Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F733-70 Support, Backguard (right) Special Order $ 27.86

1 3807F734-70 Support, Backguard (left) Special Order $ 18.35

2 3608F121-09 Trim, Vent Special Order $ 12.99

3 2602N352-09 Panel, Control Appelez-nous -
4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 15.94

5 3801F844-51 Bracket, Control Special Order $ 34.28

6 3604F398-09 Shield, Vent Special Order $ 31.26

7 WPW10166969 Control (gas)   (Replaces: W10166969) In-Stock Immediately $ 374.09

8 8036P025-60 Shield, Sight Appelez-nous -
9 4005F805-51 Cover, Rear Wire Appelez-nous -
10 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.47

11 3604F405-51 Shield, Wire Special Order $ 11.78

12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.26

13 7728P503-60 Overlay, Control Special Order $ 30.53


    View Diagram in Separate Window     Print Icon   Print Part List

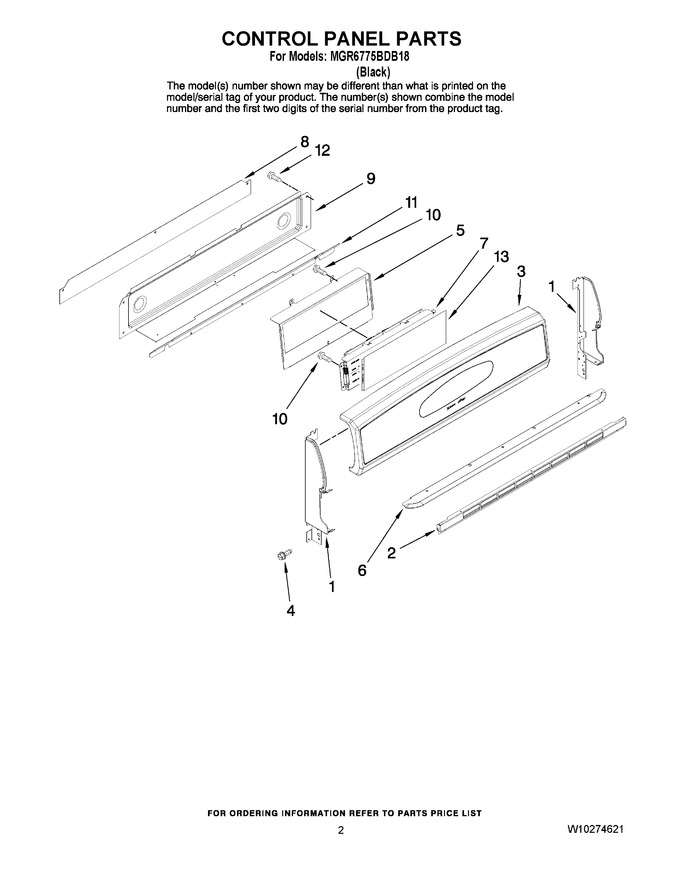

Diagram for MGR6775BDB18
