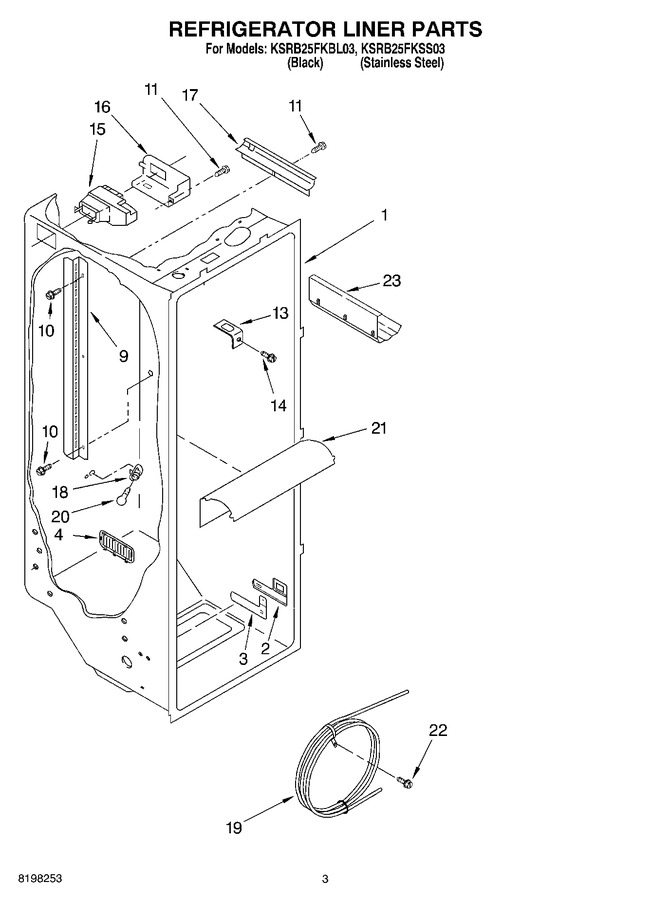

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 82.15
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.01
11	W10759522		Screw (2)   (Replaces: 486298)				$ 6.98
13	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 30.94
14	WP488488		Screw   (Replaces: 489290)				$ 6.91
15	WP2209751		Air Diffuser Assembly   (Replaces: 2209751)				$ 310.72
16	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 118.41
17	2150331		Cover, Wiring				$ 21.96
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 99.14
19	WP2256126		Reservoir   (Replaces: 2217199)				$ 151.97
20	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 21.24

    View Diagram in Separate Window       Print Part List
