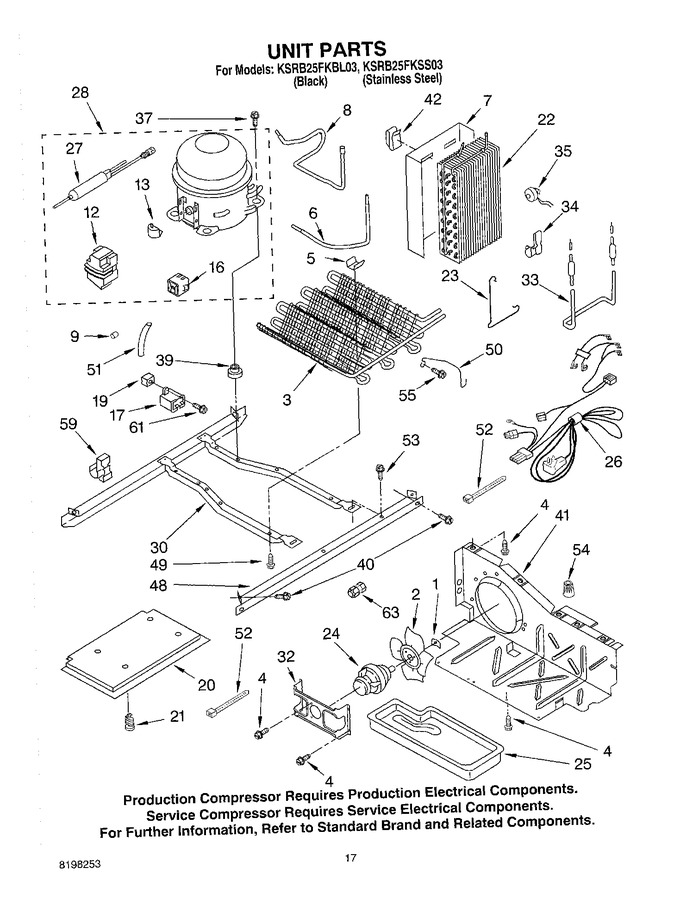

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.04 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2204484 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 16.61 | |||||
| 6 | 2211760 | Tube, Condenser To Heat Loop |
|
- | |||||
| 7 | 2149294 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 9 | WP2158826 | Dampener (3) (Replaces: 2158826) |
|
$ 1.56 | |||||
| 12 | WP2162358 | Cover (service Compressor Only) (Replaces: 4387731) |
|
$ 81.68 | |||||
| 13 | WP4387835 | Overload (service Compressor Only) (Replaces: 4387835) |
|
$ 151.79 | |||||
| 16 | 2212194 | Start Device, Combination (start Relay And Overload For Production Compressor Only) |
|
- | |||||
| 17 | WPW10662129 | Capacitor ((production) (Replaces: 999532) |
|
Immediately | $ 52.97 | ||||
| 17 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 159.34 | |||||
| 19 | 509812 | Screw Grommet |
|
- | |||||
| 20 | 2206281 | Unit Cover, Bottom |
|
- | |||||
| 21 | 489396 | Clip |
|
$ 9.65 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2209611) |
|
Immediately | $ 326.99 | ||||
| 23 | 2161324 | Clip |
|
- | |||||
| 24 | W10822259 | Motor, Fan (Replaces: 2188537) |
|
Immediately | $ 199.17 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 101.86 | ||||
| 26 | 2187398 | Harness, Unit |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2199167) |
|
Immediately | $ 47.31 | ||||
| 28 | W10309994 | Compressor (includes Items 12, 13, 17 & 27) (also Order 876765 Tube Kit) (Replaces: 2212192) |
|
Immediately | $ 551.61 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2157397) |
|
- | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 11.08 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 81.63 | ||||
| 34 | 2161330 | Clip, Heater |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2196155) |
|
Immediately | $ 45.69 | ||||
| 37 | W11661574 | Screw (Replaces: 489473) |
|
$ 12.25 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.26 | |||||
| 39 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 13.04 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 86.74 | |||||
| 42 | 2155547 | Clip, Heat |
|
- | |||||
| 48 | 2305374 | Unit Mounting Rail (Replaces: 1127911) |
|
$ 72.58 | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 50 | 2186495 | Guard, Fan |
|
- | |||||
| 51 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 52 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.11 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 54 | 850145 | Wire Connector |
|
- | |||||
| 55 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 59 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 61 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 12.65 | ||||
| 63 | N/A | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 63 | WP4373559 | Union (Replaces: 2209709) |
|
$ 69.62 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- |
