01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated

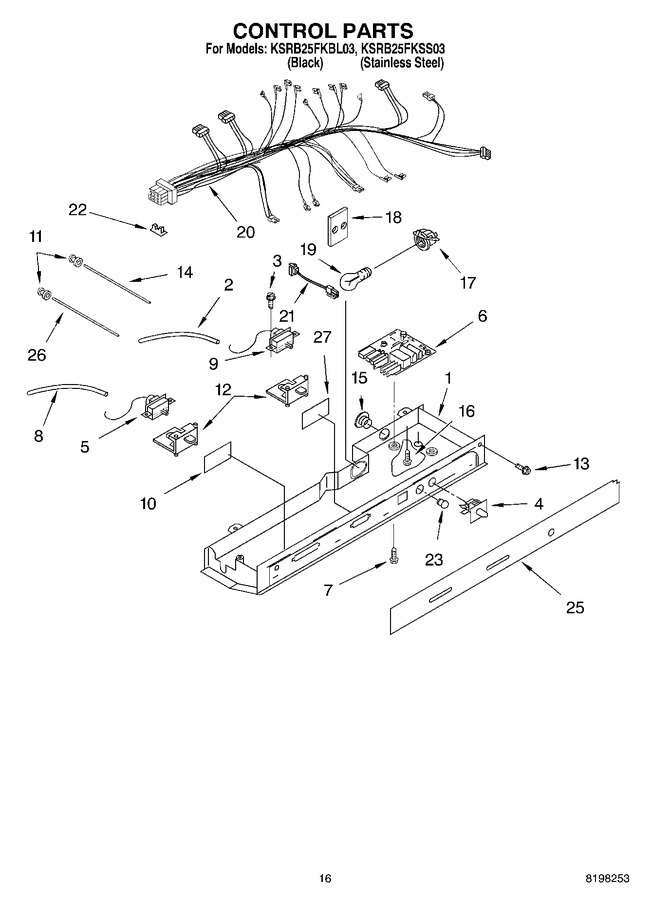

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216588		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 36.36
5	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 203.67
6	WPW10366605		Adaptive Defrost Control   (Replaces: 2213489)			Immediately	$ 248.65
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
8	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 7.16
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 223.80
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light Bar (rc)				$ 37.08
15	940014		Hole Plug				$ 18.33
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	2172931		Heat Shield				$ 63.34
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
20	2187560		Control Box Harness		Appelez-nous	-
21	W10853646		Harness, Indicator Light   (Replaces: 2213462)				$ 112.11
22	1115375		Clip, Wiring				$ 11.15
23	2200096		Cover, Light Lens				$ 64.10
25	2200099		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
