SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional

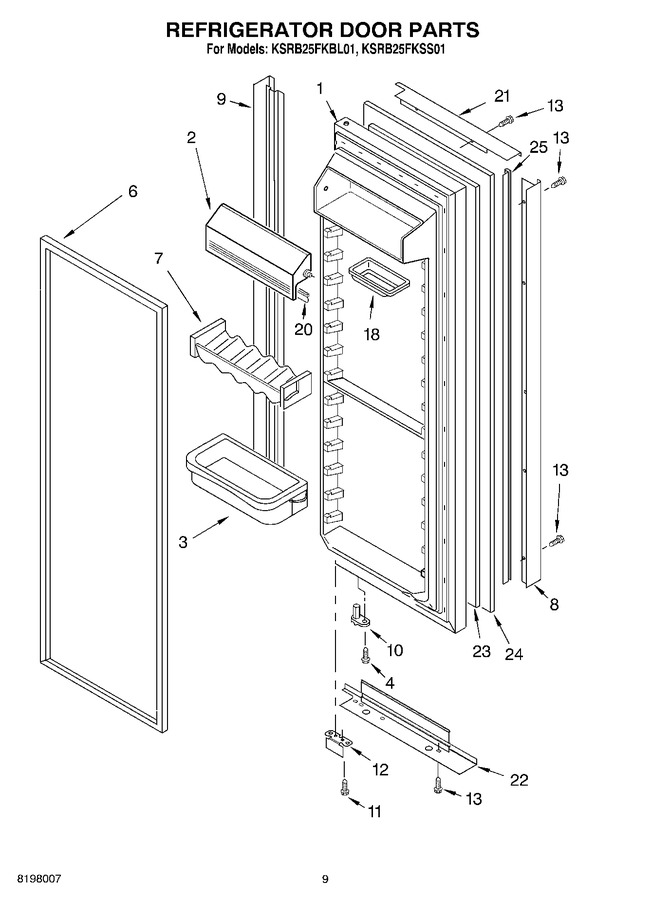

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219836B		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
2	2182399		Compartment Door		Appelez-nous	-
3	2205821		Shelf Bin (4)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 226.34
7	2193409		Beverage Holder				$ 48.13
8	2206852S		Handle (stainless Steel)		Appelez-nous	-
8	2206852B		Handle (black)		Appelez-nous	-
9	2206791B		Trim, Hinge Side (black)		Appelez-nous	-
9	2206791S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
11	WP489483		Screw   (Replaces: 489420)				$ 9.78
12	2206630B		Bracket, Door Stop		Appelez-nous	-
13	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 9.79
13	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 6.92
18	2165792		Butter, Dish		Appelez-nous	-
20	2159124		Gasket		Appelez-nous	-
21	2206790B		Trim, Door Top (black)		Appelez-nous	-
21	2206790S		Trim, Door Top (stainless Steel)		Appelez-nous	-
22	2206792S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
22	2206792B		Trim, Door Bottom (black)		Appelez-nous	-
23	2219803		Filler Board		Appelez-nous	-
24	2206883B		Panel, Door (black)		Appelez-nous	-
24	2206889S		Panel, Door (stainless Steel)		Appelez-nous	-
25	2206893B		Edging, Panel (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
