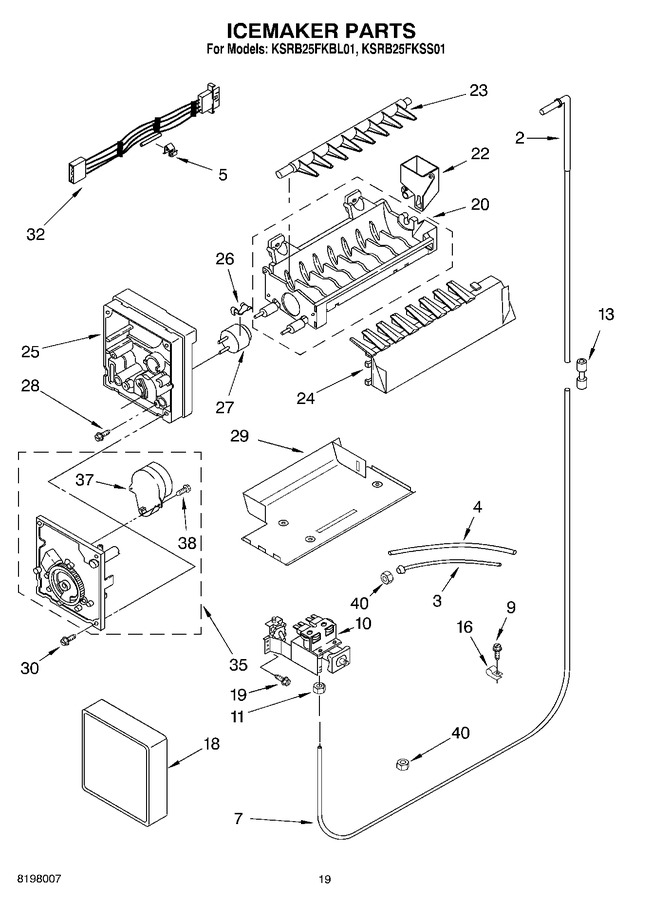

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2256096		Fitting, Water Tube   (Replaces: 2198578)			Immediately	$ 183.47
3	W11496481		Tube, Filter Outlet   (Replaces: 2186493)			Immediately	$ 31.88
4	8201597		Tube, Filter Inlet   (Replaces: 2186492)			Immediately	$ 69.32
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.51
7	WP2256096		Tube, Water   (Replaces: 2211507)			Immediately	$ 183.47
9	WP489478		Screw   (Replaces: 489478)				$ 6.98
10	W10408179		Valve, Solenoid   (Replaces: 2205762)			Immediately	$ 86.74
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 9.87
13	WP2198677		Connector, Water Tube   (Replaces: 2198677)			Immediately	$ 24.98
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.06
18	WPW10289690		Cover   (Replaces: 2174358)			Immediately	$ 7.56
19	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
20	WPW10190929		Mold & Heater Assembly (also Order Silicone Grease)   (Replaces: 628228)				$ 209.84
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 10.96
22	WP628356		Bearing & Inlet   (Replaces: 628356)				$ 46.07
23	WP627843		Ejector   (Replaces: 2194711)				$ 75.24
24	W10297244		Ice Stripper   (Replaces: 2198598)				$ 65.83
25	WP2195914		Support   (Replaces: 2194712)				$ 94.11
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 9.95
27	WP627985		Thermostat (also Order Cement Alumilastic)   (Replaces: 628397)			Immediately	$ 98.26
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 12.03
29	WP2212322		Bracket, Icemaker Mounting   (Replaces: 2212322)			Immediately	$ 96.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
32	WP2187467		Harness, Wiring   (Replaces: 2187467)				$ 116.04
35	W10190935		Module Assembly (includes Items 37 & 38)   (Replaces: 628399)			Immediately	$ 99.06
37	W10190935		Motor   (Replaces: 628398)			Immediately	$ 99.06
38	489136		Screw				$ 9.26
40	8171358		Enamel, Graphite		Appelez-nous	-
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
40	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
40	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
40	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
40	1117510		Torx Key				$ 5.84
40	1129179		Nut, Compression		Appelez-nous	-
40	350942		Primer, White (12 Oz. Spray Can)				$ 80.69
40	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
40	8171357		Enamel, Graphite (12 Oz. Spray Can)				$ 74.08
40	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 23.81
40	80051		Brush Touch-up Kit (graphite)				$ 7.64
40	4210463RW		Coil Brush   (Replaces: 8129)			Immediately	$ 26.84
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
40	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
40	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 208.40
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	833938		Kit, Terminal Connector				$ 7.26
40	WP2258236		Ice Container- Crusher Assembly   (Replaces: 2216051)				$ 368.91
40	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
