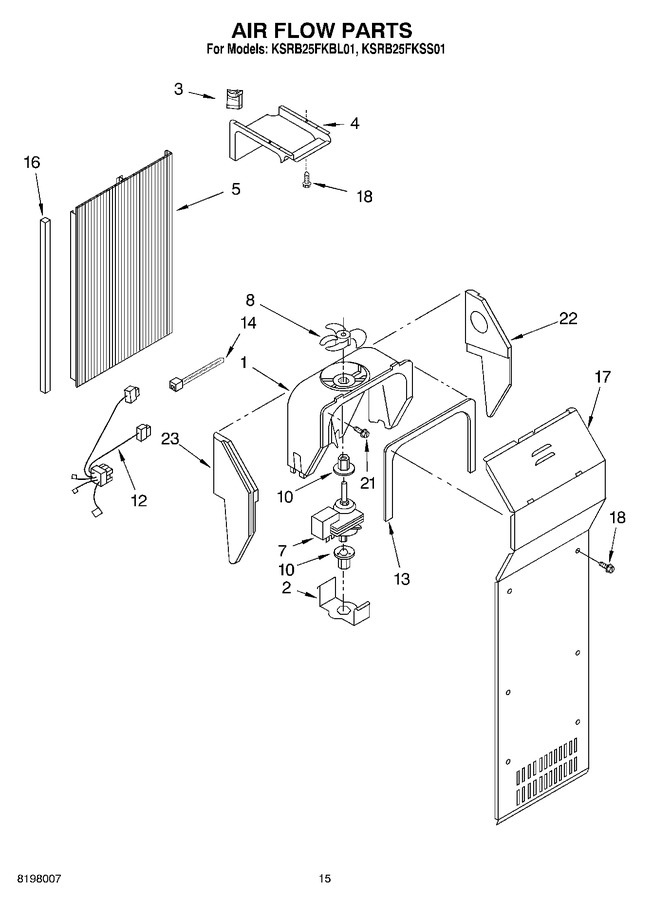

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 100.77
2	2155590		Retainer Fan Motor				$ 5.83
3	2198595		Air Scoop		Appelez-nous	-
4	2212377		Air Duct, Upper		Appelez-nous	-
5	2198580		Air Duct Freezer				$ 43.10
7	4389144		Fan Motor   (Replaces: 2149299)			Immediately	$ 70.75
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 6.99
12	W11234406		Harness, Fan, Evaporator, And Heater   (Replaces: 2206504)				$ 85.94
13	WP2155789		Gasket, Evaporator Cover   (Replaces: 2155789)				$ 7.01
14	WPW10339879		Strap   (Replaces: 2172840)				$ 7.11
16	4388500		Gasket   (Replaces: 2203876)				$ 81.35
17	2206314		Cover, Evaporator				$ 61.73
18	W11233072		Screw (6)   (Replaces: 489355)			Immediately	$ 12.62
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	4388358		Support, R.s   (Replaces: 2203595)				$ 28.04
23	4388358		Support, L.s   (Replaces: 2203596)				$ 28.04
