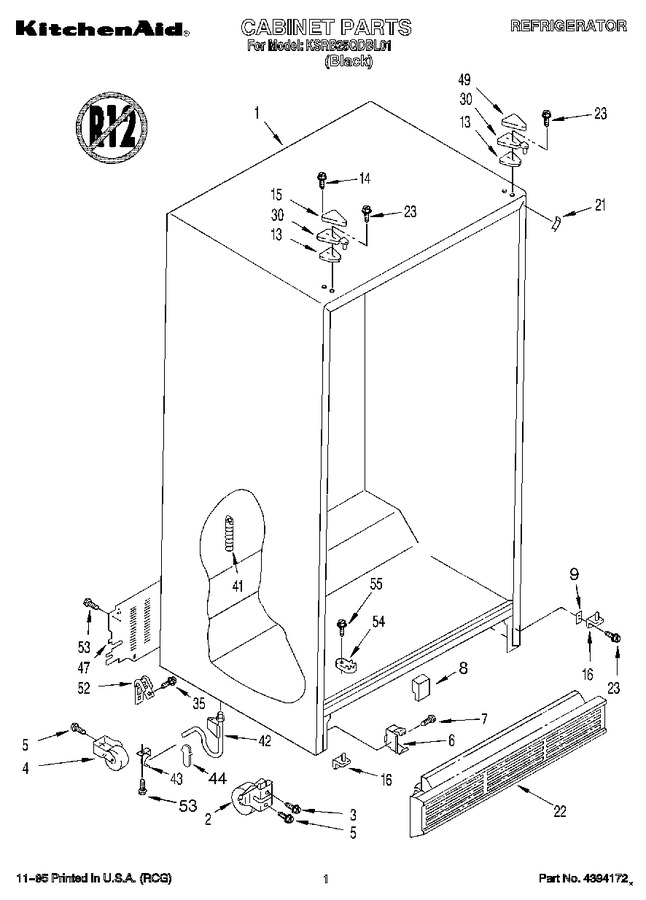

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 489456) |
|
$ 10.69 | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 36.15 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | WP489478 | Screw (Replaces: 489242) |
|
$ 6.98 | |||||
| 8 | 2176796 | Insert, Air Baffle |
|
- | |||||
| 9 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 29.89 | |||||
| 13 | 2171869 | Shim, Hinge Top |
|
- | |||||
| 14 | 489284 | Screw |
|
- | |||||
| 15 | 2171947 | Hinge Cover |
|
- | |||||
| 16 | 8201707 | Hinge Bottom (2) (Replaces: 2171851) |
|
$ 80.01 | |||||
| 21 | 1127272 | Filler, Wrapper |
|
- | |||||
| 22 | 2155485 | Grille |
|
$ 55.93 | |||||
| 23 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.07 | |||||
| 30 | 2171865 | Hinge Top (2) |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.05 | ||||
| 41 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 45.81 | ||||
| 42 | W11512417 | Tube, Extension (Replaces: 2172932) |
|
$ 31.31 | |||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 9.67 | |||||
| 44 | 2172957 | Flappper, Drain Extension |
|
- | |||||
| 47 | WP2188755 | Cover, Unit (Replaces: 2176140) |
|
$ 122.32 | |||||
| 49 | 2155938 | Hinge Cover |
|
$ 15.55 | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 12.05 | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 54 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 4.89 | ||||
| 55 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 |
