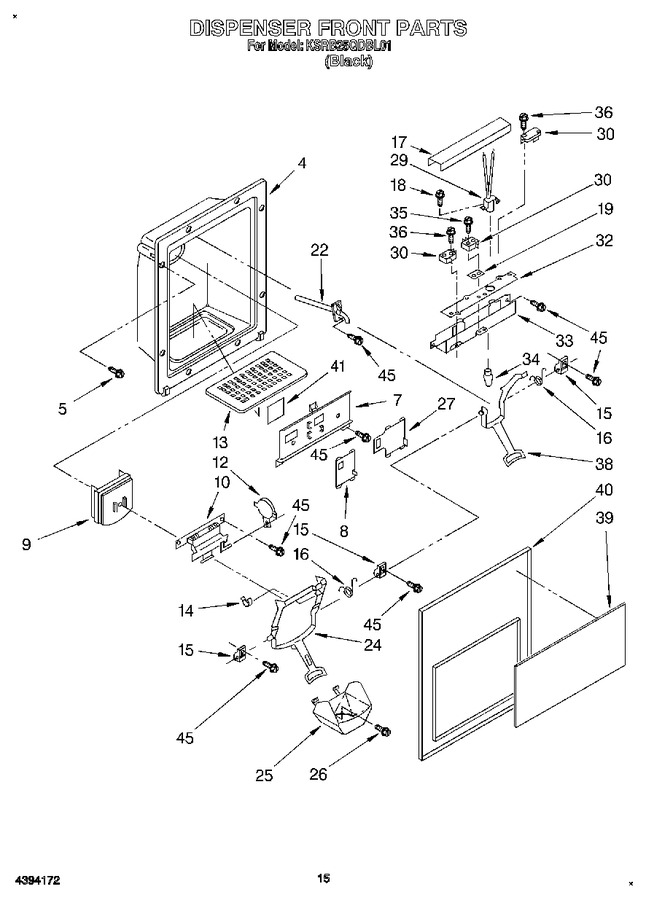

09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
7	2152716		Frame, Slides		Appelez-nous	-
8	2152719		Slide, Cube/crush Switch		Appelez-nous	-
9	WP2180353		Door, Ice   (Replaces: 2157651)			Immediately	$ 22.22
10	2157650		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 191.76
13	2152678		Grille, Overflow		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 9.79
19	625834		Spacer				$ 7.99
22	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2157744)				$ 248.79
24	2177143		Lever Assembly, Ice Dispenser		Appelez-nous	-
25	1119035		Guide, Ice		Appelez-nous	-
26	488892		Screw		Appelez-nous	-
27	2152724		Slide, Light Switch		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
30	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 24.61
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 12.29
35	488361		Screw (2)		Appelez-nous	-
36	489155		Screw,		Appelez-nous	-
38	2177148		Lever Assembly, Water Dispenser		Appelez-nous	-
39	2174340		Insert, Cover		Appelez-nous	-
40	2179388		Cover, Housing (includes Item 39)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 7.06
