SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow, Lit/optional

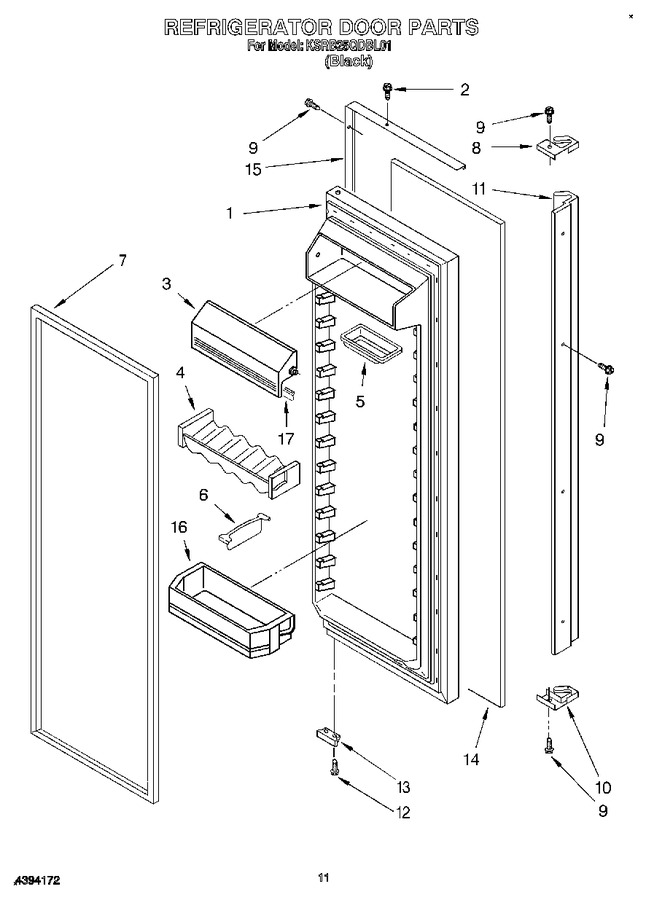

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189686		Refrigerator Door (includes No.7)		Appelez-nous	-
2	489376		Screw		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2171283		Load Lock		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (service)				$ 226.34
8	1125918		End Cap, Top		Appelez-nous	-
9	489112		Screw (2)		Appelez-nous	-
10	1125917		End Cap, Bottom		Appelez-nous	-
11	1125914		Handle		Appelez-nous	-
12	WP999367		Screw   (Replaces: 489367)				$ 7.07
13	2155334		Bracket, Door Stop		Appelez-nous	-
14	1126015		Black Glass		Appelez-nous	-
15	1117900		Trim, Door		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	2159124		Gasket, Door Compartment		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
