SELECT A DIAGRAM

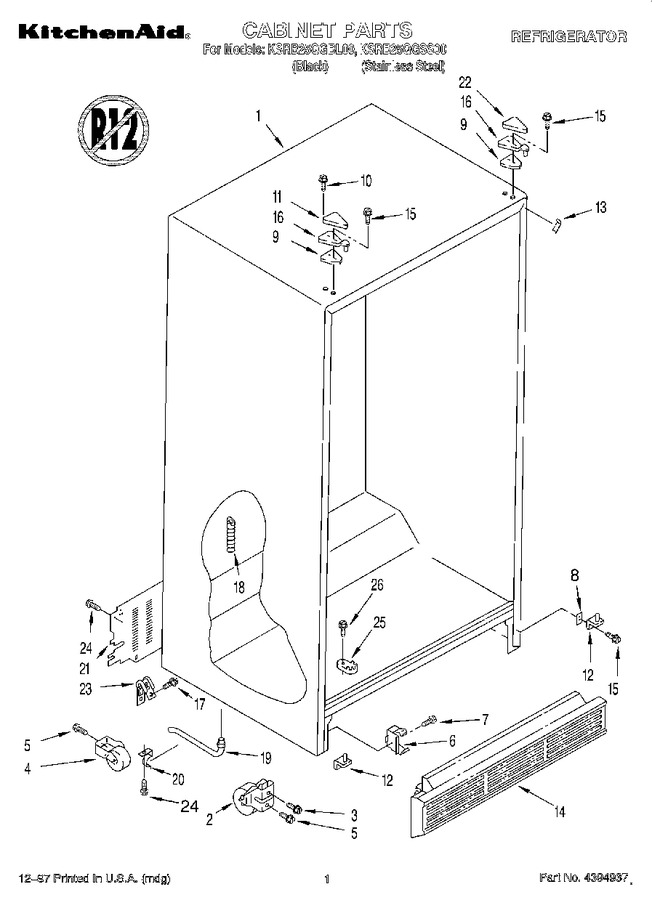

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 10.69
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489478		Screw   (Replaces: 489478)				$ 6.98
8	WP2181911		Shim   (Replaces: 2156056)				$ 29.89
9	2196049		Shim, Hinge Top		Appelez-nous	-
10	489284		Screw		Appelez-nous	-
11	2171947		Hinge Cover		Appelez-nous	-
12	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 80.01
13	1127272		Filler, Wrapper		Appelez-nous	-
14	2155485		Grille				$ 55.93
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 94.00
17	WP489478		Screw   (Replaces: 489478)				$ 6.98
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 45.81
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 28.20
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 9.67
21	WP2188755		Cover, Unit   (Replaces: 2176140)				$ 122.32
22	2155938		Hinge Cover				$ 15.55
23	549193		Clamp-service Cord				$ 12.05
24	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 4.89
26	WP489483		Screw   (Replaces: 489483)				$ 9.78

    View Diagram in Separate Window       Print Part List
