Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2194958 Refrigerator Door (includes No.7) Appelez-nous -
2 489481 Screw Appelez-nous -
3 2182399 Door, Compartment Appelez-nous -
4 2193409 Beverage Holder Special Order $ 48.13

5 2165792 Tray, Butter Appelez-nous -
6 2195497 Load Lock Appelez-nous -
7 2159083 Door Gasket, Magnetic (service) Special Order $ 226.34

8 2198100 End Cap, Top Appelez-nous -
9 4318165 Door Closer, Upper Cam   (Replaces: 2182132) In-Stock Immediately $ 24.62

10 2198098 End Cap, Bottom Appelez-nous -
11 2194946 Handle Appelez-nous -
12 WP489483 Screw   (Replaces: 489420) Special Order $ 9.78

13 2195952 Bracket, Door Stop (black) Appelez-nous -
13 2195950 Bracket, Door Stop (chrome) Special Order $ 5.84

14 2194928 Panel (stainless Steel) Appelez-nous -
14 1126015 Panel (black Glass) Appelez-nous -
15 2194950 Trim, Door Appelez-nous -
16 2171063 Shelf Bin (4) Appelez-nous -
17 2159124 Gasket, Door Compartment Appelez-nous -
18 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

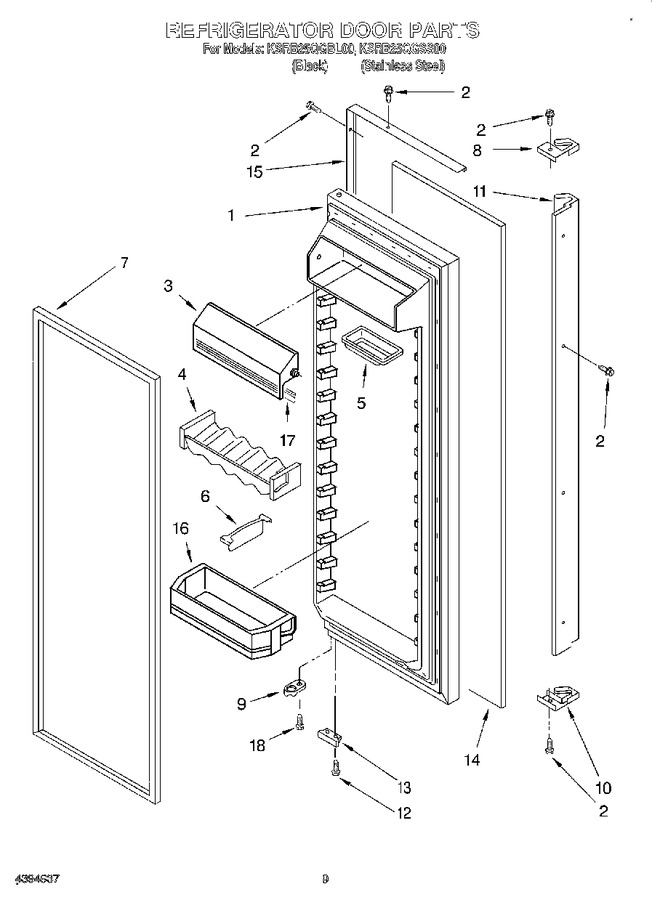

Diagram for KSRB25QGSS00
