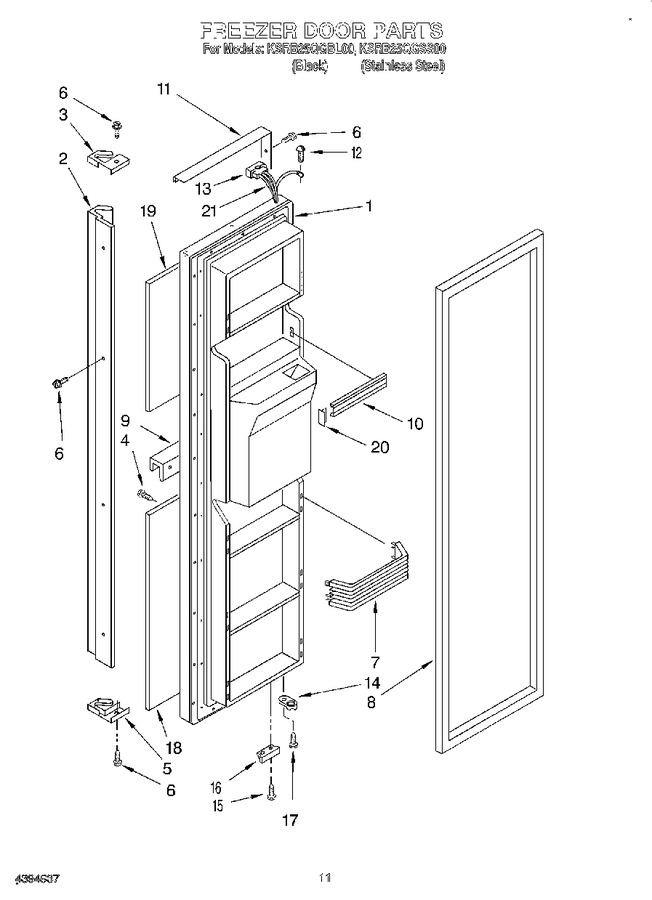

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194961		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194946		Handle		Appelez-nous	-
3	2198098		End Cap		Appelez-nous	-
4	489374		Screw		Appelez-nous	-
5	2198100		End Cap, Bottom		Appelez-nous	-
6	489481		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service)				$ 284.99
9	2194945		Trim, Dispenser		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 20.80
11	2194953		Trim, Door		Appelez-nous	-
12	WP488234		Screw   (Replaces: 489422)				$ 6.07
13	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 24.62
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	1126017		Panel Lower Black Glass		Appelez-nous	-
18	2194930		Panel, Lower (stainless Steel)		Appelez-nous	-
19	1126016		Panel Upper, Black Glass		Appelez-nous	-
19	2194929		Panel, Upper (stainless Steel)		Appelez-nous	-
20	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 10.96
21	2180229		Wire Harness				$ 73.70
