SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Air Flow


04 - Freezer Liner


05 - Refrigerator Shelf


06 - Motor And Ice Container

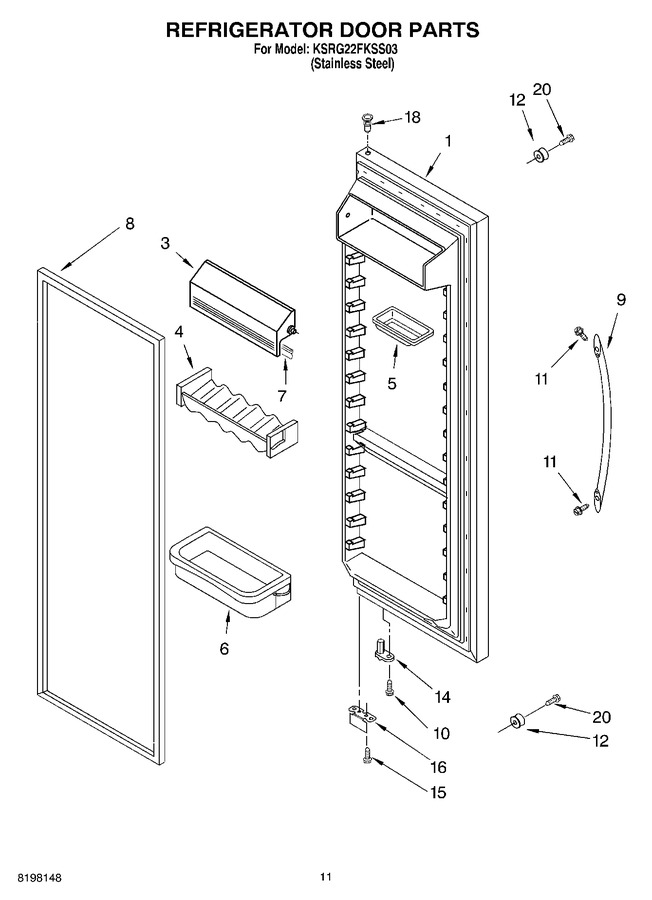

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219829S		Refrigerator Door (includes Item No.8) (stainless Steel)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2171063		Shelf Bin (3)		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 287.64
9	2204454S		Handle (stainless Steel)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	WP489463		Screw   (Replaces: 489463)				$ 7.04
12	2203690		Stud, Handle		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
18	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 6.98
20	98654		Screw, Set		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
