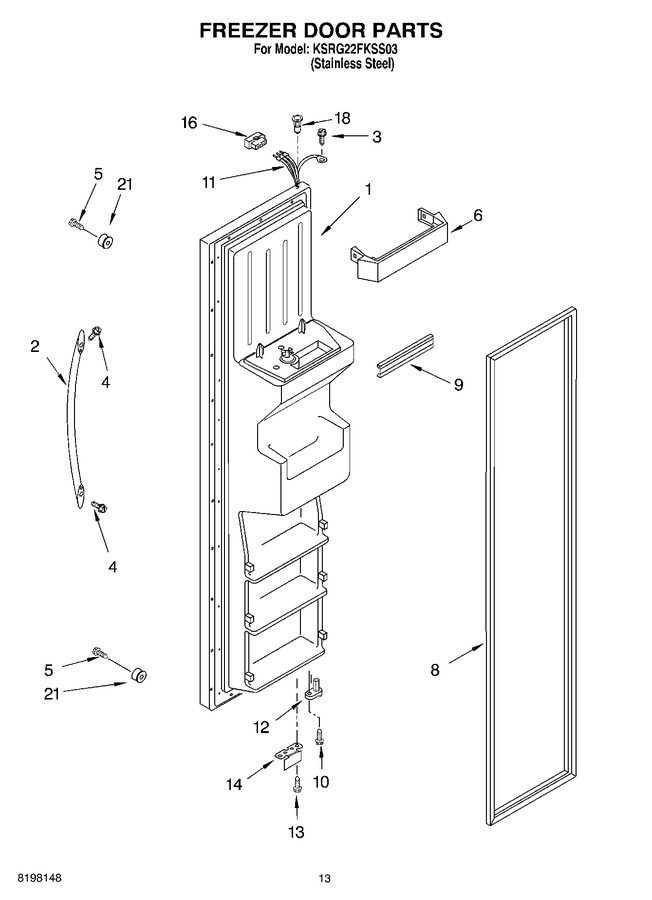

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207348S		Freezer Door (includes Item No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2204454S		Handle (stainless Steel)		Appelez-nous	-
3	WP489128		Screw   (Replaces: 488500)				$ 9.79
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	98654		Screw, Set		Appelez-nous	-
6	2171071		Trivet, Shelf (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 279.35
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 20.80
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	2207213		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
13	WP489483		Screw   (Replaces: 489420)				$ 9.78
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
16	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
21	2203690		Stud, Handle		Appelez-nous	-
