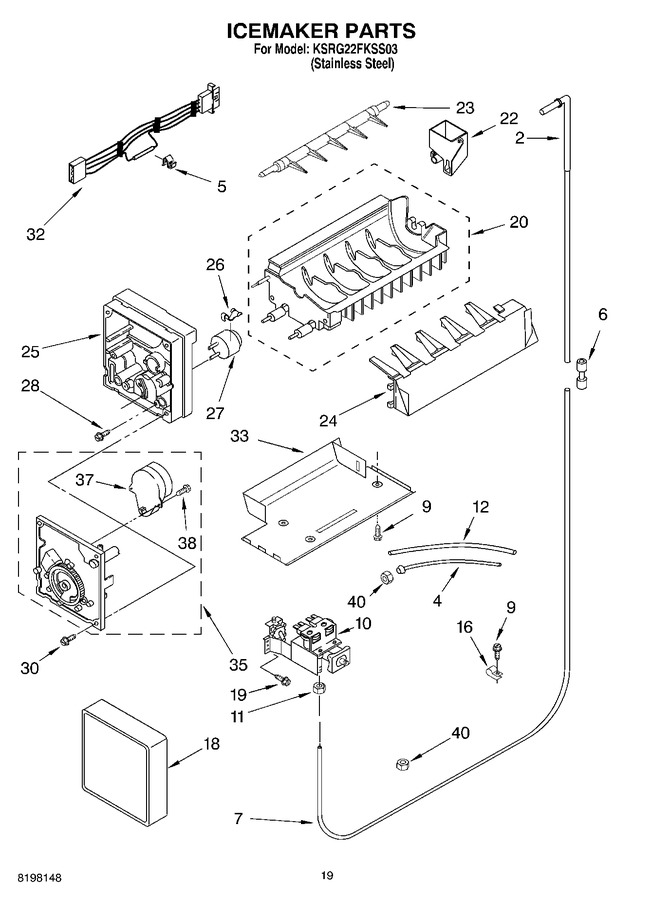

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2256096 | Fitting, Water Tube (Replaces: 2198578) |
|
Immediately | $ 183.47 | ||||
| 4 | W11496481 | Tube, Filter Outlet (Replaces: 2186493) |
|
Immediately | $ 31.88 | ||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 6 | WP2198677 | Connector, Water Tube (Replaces: 2198677) |
|
Immediately | $ 24.98 | ||||
| 7 | WP2256096 | Tube, Water (Replaces: 2216964) |
|
Immediately | $ 183.47 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 10 | W10822681 | Valve, Solenoid (Replaces: 2212374) |
|
Immediately | $ 146.64 | ||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 9.87 | |||||
| 12 | 8201597 | Tube, Filter Inlet (Replaces: 2200202) |
|
Immediately | $ 69.32 | ||||
| 16 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.06 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174358) |
|
Immediately | $ 7.56 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 20 | WPW10122550 | Mold & Heater Assembly (also Order (Replaces: 2212351) |
|
$ 186.55 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 10.96 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 46.07 | |||||
| 23 | 626753 | Ejector (Replaces: 2212320) |
|
$ 12.55 | |||||
| 24 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 65.68 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 94.11 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 9.95 | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
Immediately | $ 98.26 | ||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 12.03 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 32 | WPW10309401 | Harness, Wiring (Replaces: 2187484) |
|
$ 113.64 | |||||
| 33 | 2212317 | Bracket, Icemaker Mounting |
|
$ 62.52 | |||||
| 35 | W10190935 | Module Assembly (includes Items 37 & 38) (Replaces: 628399) |
|
Immediately | $ 99.06 | ||||
| 37 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 99.06 | ||||
| 38 | 489136 | Screw |
|
$ 9.26 | |||||
| 40 | 1129179 | Nut, Compression |
|
- |
