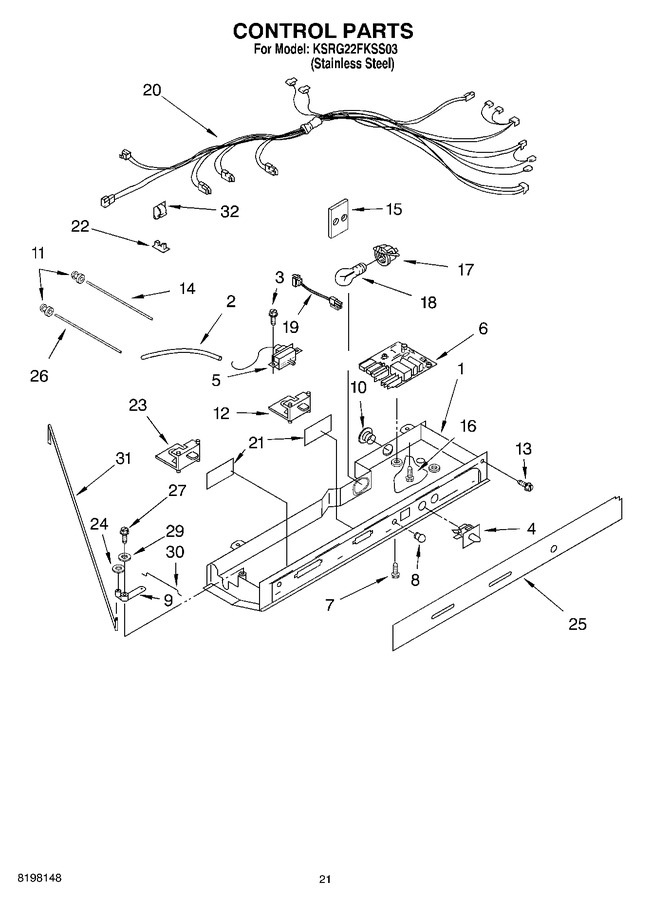

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201785		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2196001)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 36.36
5	WP2315562		Thermostat   (Replaces: 2161282)			Immediately	$ 95.56
6	WPW10366605		Adaptive Defrost Control   (Replaces: 2213489)			Immediately	$ 248.65
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
8	2200096		Cover, Light Lens				$ 64.10
9	2161306		Pivot Arm				$ 9.65
10	940014		Hole Plug				$ 18.33
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light, Bar				$ 37.08
15	2172931		Heat Shield				$ 63.34
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
19	W10853646		Harness, Indicator Light   (Replaces: 2213462)				$ 112.11
20	2311632		Harness, Control Box   (Replaces: 2212237)				$ 149.36
21	2175513		Window		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	2181741		Slide, Air Control				$ 81.44
24	489391		Fastner, Push-on				$ 7.52
25	2211959		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar		Appelez-nous	-
27	627068		Screw				$ 10.91
29	489203		Washer, Spring		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	2161308		Connecting Rod (long)				$ 154.90
32	2212303		Ice Container Assembly		Appelez-nous	-
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
32	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
32	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
32	350956		Enamel, Almond (12 Oz. Spray Can)				$ 46.30
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	833938		Kit, Terminal Connector				$ 7.26
32	1117510		Torx Key				$ 5.84
32	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 6.98
32	350942		Primer, White (12 Oz. Spray Can)				$ 80.69
32	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
32	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 23.81
32	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 208.40
