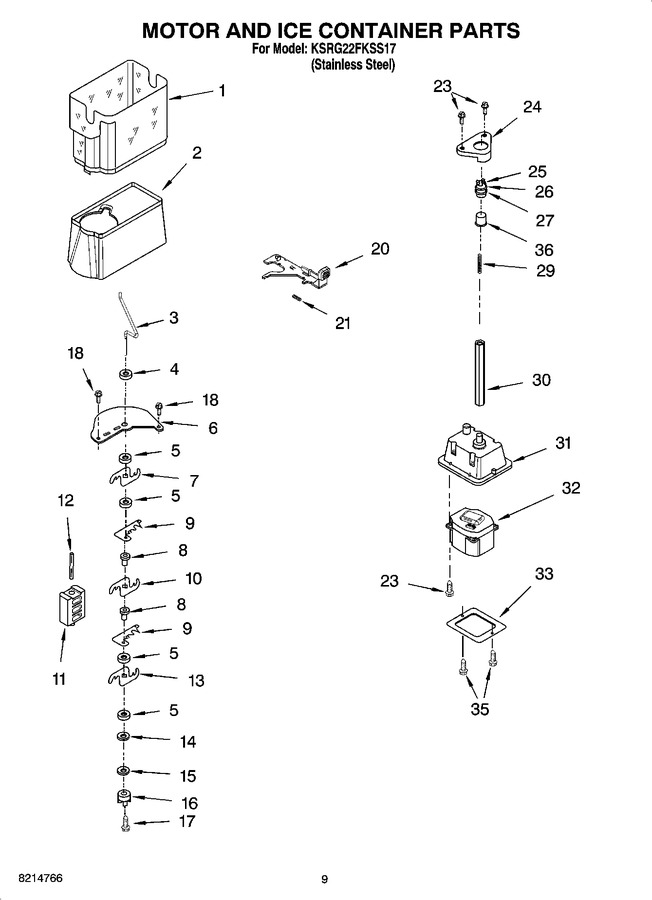

Diagram for 06 - Motor And Ice Container Parts
06 - Motor And Ice Container Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Dispenser Front Parts
09 - Dispenser Front Parts

Diagram for 10 - Unit Parts
10 - Unit Parts

Diagram for 11 - Icemaker Parts
11 - Icemaker Parts

Diagram for 12 - Control Parts, Optional Parts (not Included)
12 - Control Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2212302 Ice Bin Appelez-nous -
2 2255583 Crusher Bin Appelez-nous -
3 2258224 Auger Appelez-nous -
4 2258220 Washer Special Order $ 8.02

5 WP1119007 Spacer, Flat (4)   (Replaces: 1119007) Special Order $ 12.66

6 2255461 Cover, Crusher Appelez-nous -
7 W10278733 Blade, Rotary   (Replaces: 2257024) Special Order $ 78.00

8 WP1119005 Spacer, Step (2)   (Replaces: 1119005) Special Order $ 10.06

9 2257020 Blade, Fixed Special Order $ 59.91

10 W10278732 Blade, Rotary   (Replaces: 2257023) Special Order $ 78.00

11 2198602 Block, Blade Appelez-nous -
12 489229 Roll Pin Special Order $ 41.54

13 W10278731 Blade, Rotary   (Replaces: 2257022) Special Order $ 77.89

14 489235 Washer, Plain Special Order $ 8.05

15 WP2198661 Washer, Coupling   (Replaces: 2198661) Special Order $ 9.81

16 WP2220457 Coupling   (Replaces: 2220457) In-Stock Immediately $ 30.79

17 WP8281164 Screw   (Replaces: 8281164) Special Order $ 9.71

18 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 6.97

20 2301346 Latch, Bin Appelez-nous -
21 WP2198608 Spring, Latch   (Replaces: 2198608) Special Order $ 6.47

23 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 9.17

24 2212369 Holder Special Order $ 22.63

25 WP2220458 Coupling, Bottom   (Replaces: 2220458) In-Stock Immediately $ 35.18

26 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 10.77

27 WP2212370 Washer   (Replaces: 2212370) Special Order $ 21.39

29 W10852956 Spring   (Replaces: 2198607) In-Stock Immediately $ 18.34

30 WP2188917 Drive Shaft   (Replaces: 999536) Special Order $ 90.16

31 2256154 Enclosure, Motor Special Order $ 49.78

32 2212363 Dispenser, Motor Special Order $ 176.95

33 2212305 Cover Appelez-nous -
35 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98

36 WP2212365 Sleeve, Coupling   (Replaces: 2212365) Special Order $ 27.01

100 2258230 Ice Container (complete) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
