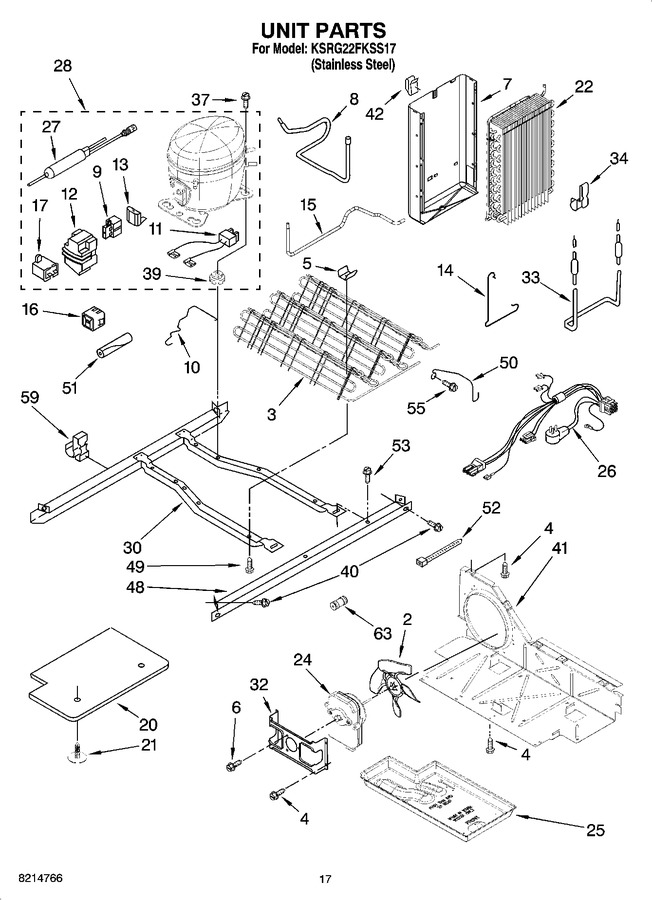

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 21.59 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: 2223953) |
|
$ 277.25 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 16.61 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 9.51 | |||||
| 7 | 2304288 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 2205764 | Tube Suction |
|
$ 76.44 | |||||
| 9 | 2183454 | Relay (service Only) |
|
- | |||||
| 10 | 2223314 | Clip, Retaining |
|
- | |||||
| 11 | WP2172890 | Wire, Capacitor (service Only) (Replaces: 4387765) |
|
$ 7.29 | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 81.68 | |||||
| 13 | WP2187145 | Overload (service Only) (Replaces: 2187145) |
|
$ 131.93 | |||||
| 14 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 15 | 2261599 | Tube, Condenser To Heat Loop |
|
$ 208.86 | |||||
| 16 | 2188829 | Start-device, Combination (start Relay And Overload For Production Compressor Only) |
|
- | |||||
| 17 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 159.34 | |||||
| 17 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 52.97 | ||||
| 20 | 2182057 | Unit Cover, Bottom |
|
$ 72.28 | |||||
| 21 | 489396 | Clip |
|
$ 9.65 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 305.87 | ||||
| 24 | WP2188874 | Motor, Fan (Replaces: 2188874) |
|
Immediately | $ 102.56 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 101.86 | ||||
| 26 | WPW10309395 | Harness, Wire (Replaces: 2187783) |
|
$ 264.30 | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 47.31 | ||||
| 27 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 47.31 | ||||
| 28 | W10309990 | Compressor (includes Items 9, 11, 12, 13, 17, 27 & 39) (Replaces: 2212191) |
|
Immediately | $ 569.53 | ||||
| 30 | 2304903 | Frame, Unit Mounting (Replaces: 2160501) |
|
$ 209.73 | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 11.08 | |||||
| 33 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 105.64 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 6.68 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 6.68 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.26 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 86.74 | |||||
| 42 | 2155547 | Clip, Heat |
|
- | |||||
| 48 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 50 | 2186496 | Guard, Fan |
|
- | |||||
| 51 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 52 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.11 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 55 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 59 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 63 | WP4373559 | Connector, Water Tube (Replaces: 2209709) |
|
$ 69.62 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- |
