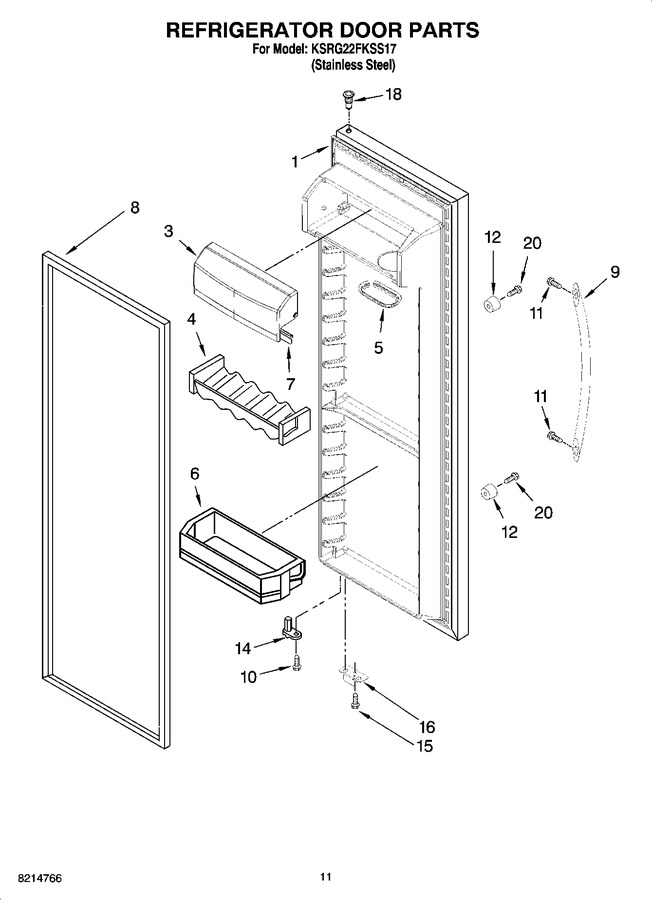

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219829S | Refrigerator Door (includes Item 8) (stainless Steel) |
|
- | |||||
| 3 | 2301486 | Door, Compartment |
|
- | |||||
| 4 | 2193409K | Beverage Holder |
|
- | |||||
| 5 | 2165792K | Dish, Butter |
|
$ 9.72 | |||||
| 6 | 2171063K | Door Bin (4) |
|
$ 41.12 | |||||
| 7 | 2159124 | Gasket |
|
- | |||||
| 8 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2221311) |
|
$ 287.64 | |||||
| 9 | 2304832SK | Handle (includes 11) (stainless Steel) |
|
- | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 11 | W11366418 | Screw (Replaces: W10010140) |
|
Immediately | $ 14.21 | ||||
| 12 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 7.66 | ||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 5.75 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 16 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 36.03 | |||||
| 18 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 6.98 | |||||
| 20 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 |
