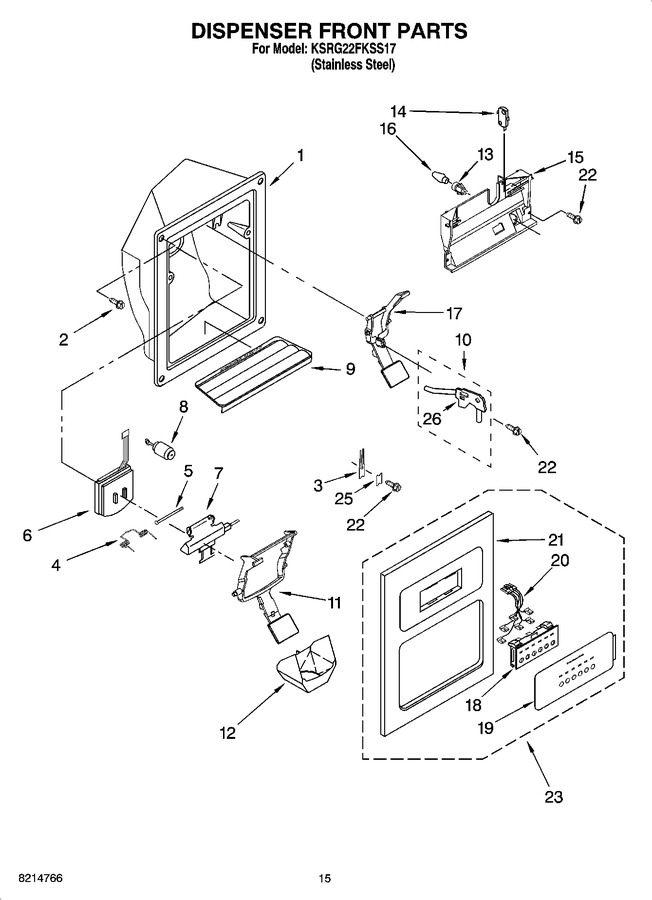

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 10.59 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 74.92 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.12 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 22.22 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206671B | Grille, Overflow (black) (Replaces: 2206671B) |
|
$ 62.15 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 120.72 | |||||
| 11 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 24.87 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 88.79 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 24.61 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 21.95 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 12.29 | ||||
| 17 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 88.13 | ||||
| 20 | 2187406 | Wire Assembly |
|
$ 108.57 | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.06 | |||||
| 23 | 2207349B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
- | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 10.50 | |||||
| 26 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 14.04 |
