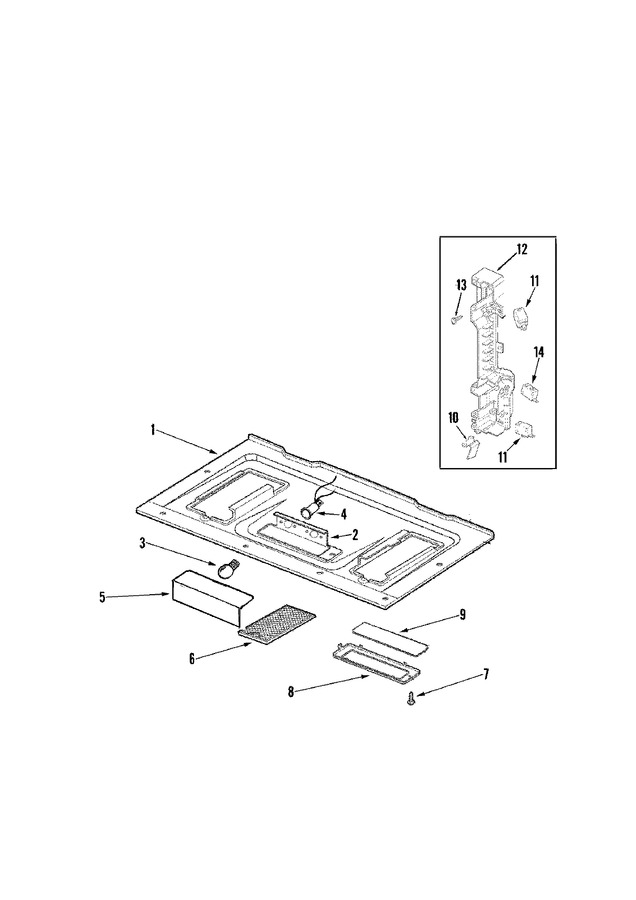

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0131490		Plate, Base	10-50	Appelez-nous	-
2	53001418		Protector	10-50	Appelez-nous	-
3	WPA3073101		Lamp (oven/baseless)   (Replaces: R9900292)	10-50		Immediately	$ 10.90
4	R9800407		Socket, Lamp	10-50	Appelez-nous	-
5	53001173		Cover, Lamp	10-50	Appelez-nous	-
6	4358853		Filter, Air   (Replaces: 56001069)	10-50		Immediately	$ 16.99
7	R0654036		Screw, Truss Hd S/tap	10-50	Appelez-nous	-
8	R9800392		Bracket, Lens	10-50	Appelez-nous	-
9	R9800395		Lens, Glass	10-50	Appelez-nous	-
10	R9800416		Lever, Latch	10-50	Appelez-nous	-
11	4392027		Switch, Micro   (Replaces: 53001018)	10-50			$ 138.41
12	R0130612		Bracket, Latch	10-50	Appelez-nous	-
13	R0654178		Screw, Special D	10-50	Appelez-nous	-
14	4392027		Switch, Micro   (Replaces: 53001019)	10-50			$ 138.41
