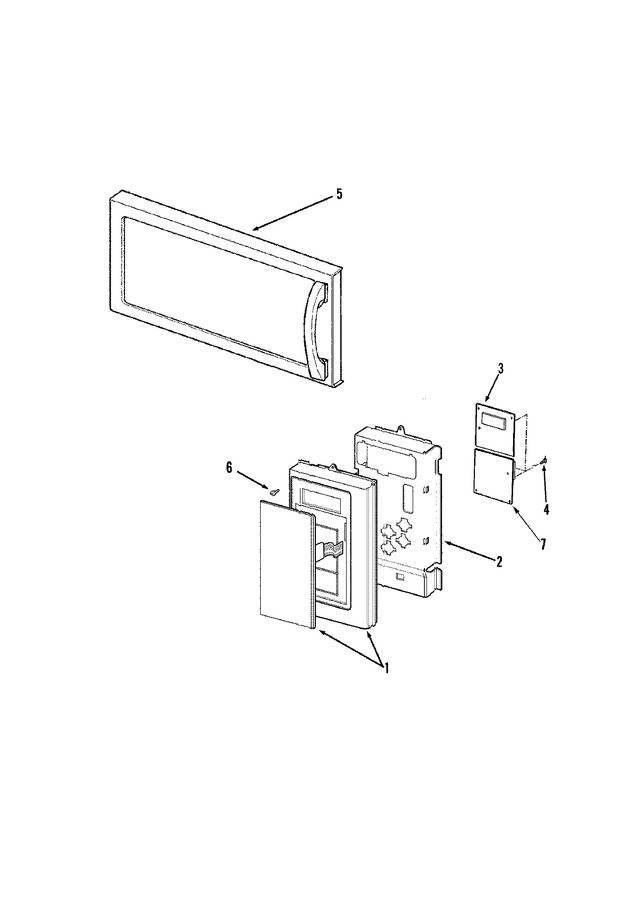

04 - Control Panel/door Assembly


05 - Installation


06 - Outer Case/vent Grille


07 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001488		Control Panel/switch Asy (wht)	10-50	Appelez-nous	-
2	53001704		Bracket, Control Panel	10-50	Appelez-nous	-
3	53001713		Board, Control (pcb)	50	Appelez-nous	-
3	53001713		Board, Control (pcb)	10-49	Appelez-nous	-
4	R0654185		Screw, Truss Hd	10-50	Appelez-nous	-
5	53001687		Door Assembly (wht)	10-50	Appelez-nous	-
6	R0654183		Screw, Truss Hd	10-50	Appelez-nous	-
7	53001714		Board, Control-lwr (pcb)	10-49	Appelez-nous	-
7	W10124350		Not Required Part Or See Note	50	Appelez-nous	-
