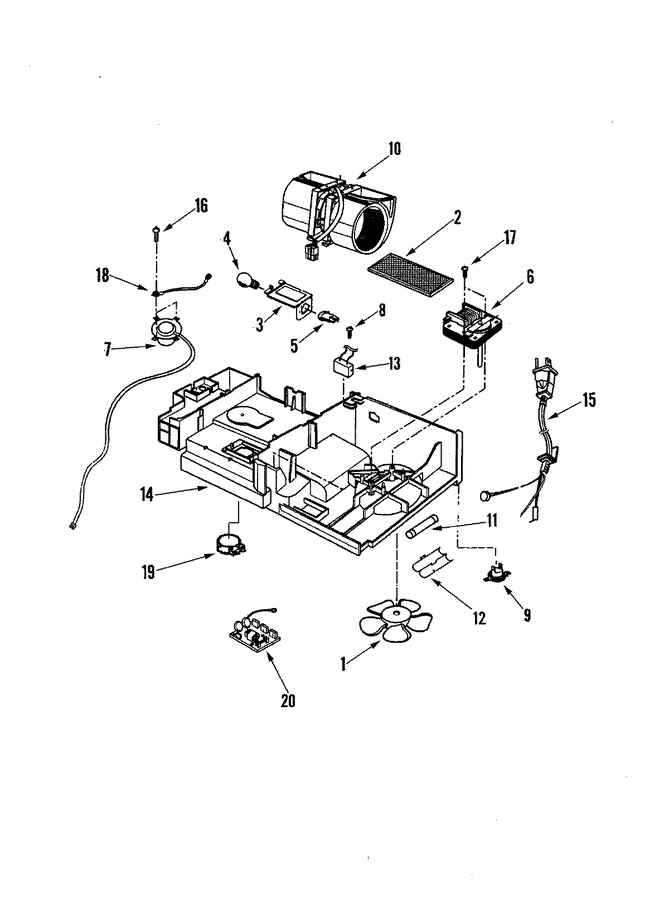

SELECT A DIAGRAM

01 - Base/latch Board Assembly


02 - Blower Motor


03 - Cavity


04 - Control Panel/door Assembly


05 - Installation


06 - Outer Case/vent Grille


07 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R9800458		Blade, Motor Fan	10-50	Appelez-nous	-
2	WP53001442		Filter (charcoal)   (Replaces: 53001442)	10-50			$ 33.60
3	R9800462		Cover	10-50	Appelez-nous	-
4	8206232A		Lamp (oven/baseless)   (Replaces: R9900310)	10-50		Immediately	$ 6.61
5	53001775		Socket, Lamp	10-50	Appelez-nous	-
6	53001783		Motor, Fan	10-50	Appelez-nous	-
7	53001432		Sensor Assembly	10-50			$ 67.18
8	R0654183		Screw, Truss Hd	10-50	Appelez-nous	-
9	R9900321		Thermostat, Bimetal	10-50	Appelez-nous	-
10	53001415		Motor, Ventilation	10-50	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	51	Appelez-nous	-
11	WP8183507		Fuse, 20 A.   (Replaces: 56001353)	10-50			$ 18.33
12	R0131114		Cap, Fuse	10-50	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	51	Appelez-nous	-
13	53001789		Capacitor	10-50	Appelez-nous	-
14	53001764		Duct, Air	10-50	Appelez-nous	-
15	53001881		Cord, Power	51	Appelez-nous	-
15	R0131504		Cord, Power	10-50	Appelez-nous	-
16	53001463		Screw, Pan Head	10-50	Appelez-nous	-
18	R9800470		Wire	10-50	Appelez-nous	-
19	53001406		Motor, Stirrer Blade	10-50	Appelez-nous	-
20	R9800472		Assy, Fuse Block/noise Filter	51	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
