SELECT A DIAGRAM

01 - Base/latch Board Assembly


02 - Blower Motor


03 - Cavity


04 - Control Panel/door Assembly


05 - Installation


06 - Outer Case/vent Grille


07 - Supplemental Information

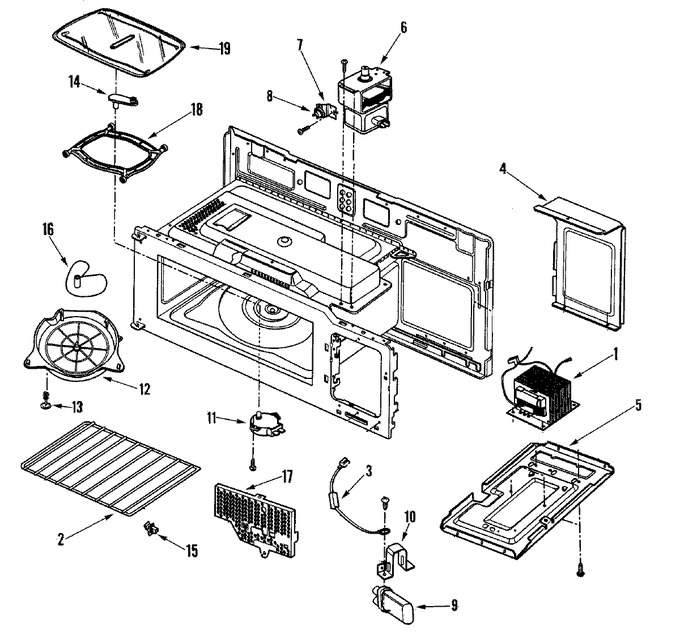

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001782		Transformer	10-50	Appelez-nous	-
2	53001717		Shelf, Wire	10-50	Appelez-nous	-
3	WPR9800486		Diode Cable Assy   (Replaces: R0131275)	10-50			$ 26.79
4	53001788		Guide, Air	10-50	Appelez-nous	-
5	53001786		Plate, Bottom	10-50	Appelez-nous	-
6	53001594		Magnetron	10-50	Appelez-nous	-
7	53001643		Bracket- Thermostat	10-50	Appelez-nous	-
8	R9900542		Thermostat - Mag	10-50	Appelez-nous	-
9	WP59001168		Capacitor   (Replaces: 53001365)	10-50		Immediately	$ 208.35
10	R9800436		Bracket, Capacitor	10-50	Appelez-nous	-
11	53001440		Motor, Turntable	10-50	Appelez-nous	-
12	53001787		Cover, Stirrer	10-50	Appelez-nous	-
13	WP4359508		Rivet, Plastic   (Replaces: R9800452)	10-50			$ 8.28
14	53001716		Shaft/ring Assembly	10-50	Appelez-nous	-
15	53001033		Support, Shelf	10-50	Appelez-nous	-
16	53001785		Fan Assembly	10-50			$ 27.43
17	R0130601		Cover, Wave Guide	10-50	Appelez-nous	-
18	53001715		Rotating Ring Assembly	10-50	Appelez-nous	-
19	53001532		Tray, Glass	10-50			$ 96.59

    View Diagram in Separate Window       Print Part List
