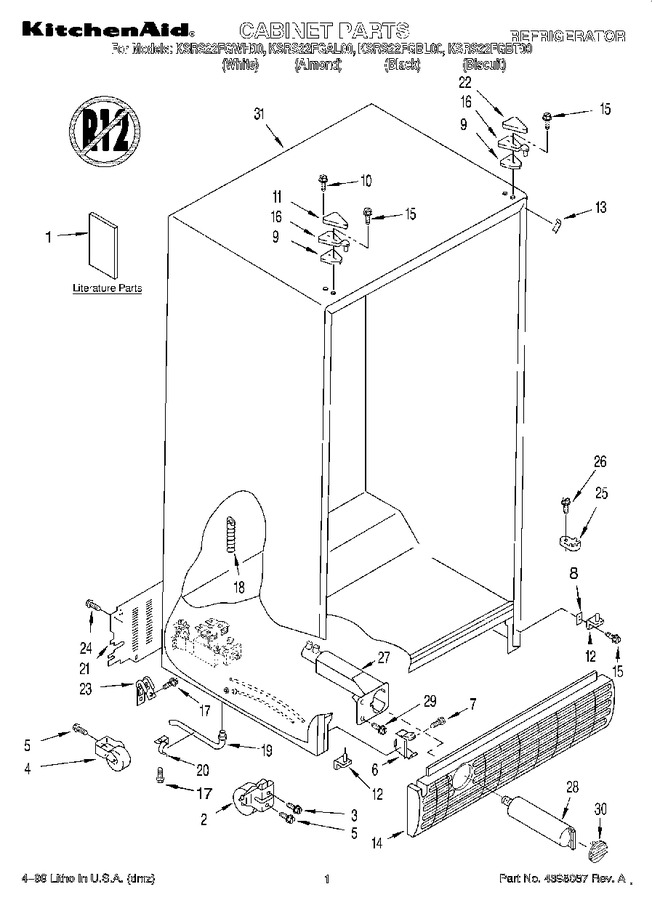

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2200278		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2204298		Energy Label		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2200139		Literature Parts (use & Care Guide)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 10.69
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille (2)   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489478		Screw   (Replaces: 489478)				$ 6.98
8	WP2181911		Shim   (Replaces: 2181911)				$ 29.89
9	2196048		Shim, Hinge Top		Appelez-nous	-
10	489284		Screw		Appelez-nous	-
11	2186858		Hinge Cover (biscuit)		Appelez-nous	-
11	1129262		Hinge Cover (white)				$ 15.75
11	2150343		Hinge Cover (almond)		Appelez-nous	-
11	2151694		Hinge Cover (black)		Appelez-nous	-
12	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 80.01
13	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
13	2196097		Filler, Wrapper (black)		Appelez-nous	-
13	2196095		Filler, Wrapper (almond)		Appelez-nous	-
13	2196094		Filler, Wrapper (white)		Appelez-nous	-
14	W10802713		Grille (almond)   (Replaces: 2198467N)				$ 109.66
14	W10802713		Grille (black)   (Replaces: 2198467B)				$ 109.66
14	W10802713		Grille (white)   (Replaces: 2198467W)				$ 109.66
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 94.00
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 45.81
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 28.20
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 9.67
21	WP2188756		Cover, Unit   (Replaces: 2171938)				$ 127.50
22	2155938		Hinge Cover (black)				$ 15.55
22	1119787		Hinge Cover (white)				$ 22.50
22	1119789		Hinge Cover (almond)		Appelez-nous	-
22	2186857		Hinge Cover (biscuit)		Appelez-nous	-
23	549193		Clamp-service Cord				$ 12.05
24	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
25	WPW10329686		Door Closer, Lower Cam   (Replaces: 2155311)			Immediately	$ 4.89
26	WP489483		Screw   (Replaces: 489483)				$ 9.78
27	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 87.62
28	EDR5RXD1B		Filter, Water   (Replaces: 2203220)			Immediately	$ 49.99
29	WP489500		Screw   (Replaces: 489500)				$ 7.00
30	2186884N		Cap, Water Filter (almond)		Appelez-nous	-
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186884W)				$ 50.15
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186884B)			Immediately	$ 47.88
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186884T)				$ 10.69
31	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
