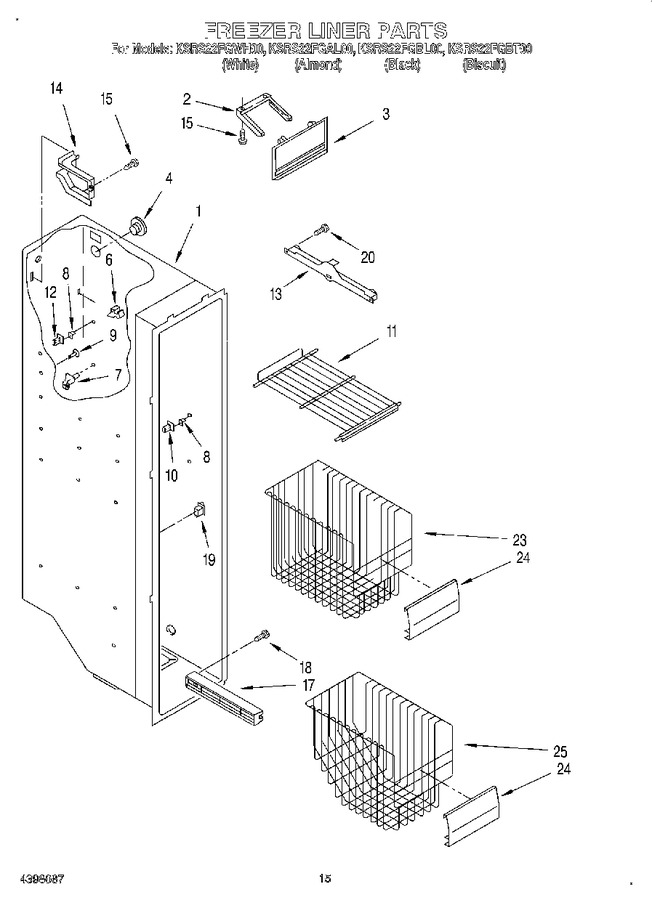

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 59.92
4	940014		Hole Plug				$ 18.33
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.38
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support, Stud (2)		Appelez-nous	-
9	2176134		Grommet (4)				$ 5.83
10	946356		Stud, Front		Appelez-nous	-
11	WP2174249K		Shelf (2)   (Replaces: 2174249)				$ 190.07
12	1106982		Stud, Rear		Appelez-nous	-
13	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 119.49
13	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 111.53
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 12.62
17	2181759		Shelf Track (left Side (2))		Appelez-nous	-
17	2181760		Shelf Track (right Side (2))		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 6.98
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 34.36
20	718257		Screw   (Replaces: 489100)		Appelez-nous	-
23	2181761		Basket, Upper		Appelez-nous	-
24	2171768		Front, Basket		Appelez-nous	-
25	2181762		Basket, Lower		Appelez-nous	-
