SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Icemaker


12 - Control, Optional

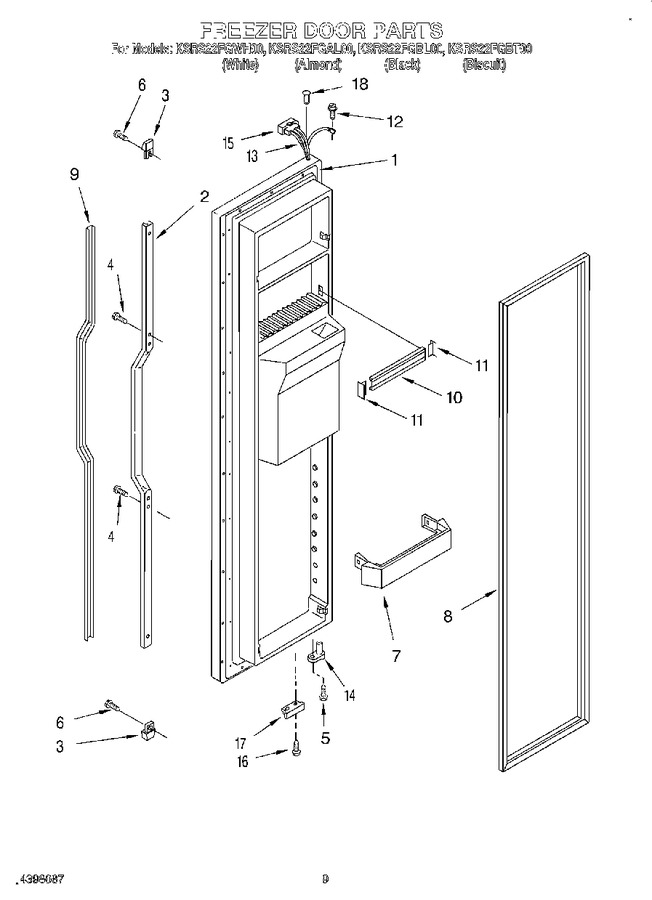

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186518N		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2186518B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2186518T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2186518W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194776T		Retainer, Insert (biscuit)		Appelez-nous	-
2	2194776W		Retainer, Insert (white)		Appelez-nous	-
2	2194776N		Retainer, Insert (almond)		Appelez-nous	-
2	2194776B		Retainer, Insert (black)		Appelez-nous	-
3	2194778B		End Cap (2) (black)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
3	2194778T		End Cap (2) (biscuit)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	WP3400852		Screw   (Replaces: 3400852)				$ 8.86
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service) (black)				$ 279.35
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 277.37
9	2173832		Insert, Handle (black)		Appelez-nous	-
9	2200434		Insert, Handle (biscuit)		Appelez-nous	-
9	2173831		Insert, Handle (almond)		Appelez-nous	-
9	2173830		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 20.80
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 10.96
12	WP489128		Screw   (Replaces: 488500)				$ 9.79
13	2198272		Wire Harness		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2195950		Bracket, Door Stop				$ 5.84
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
