SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf

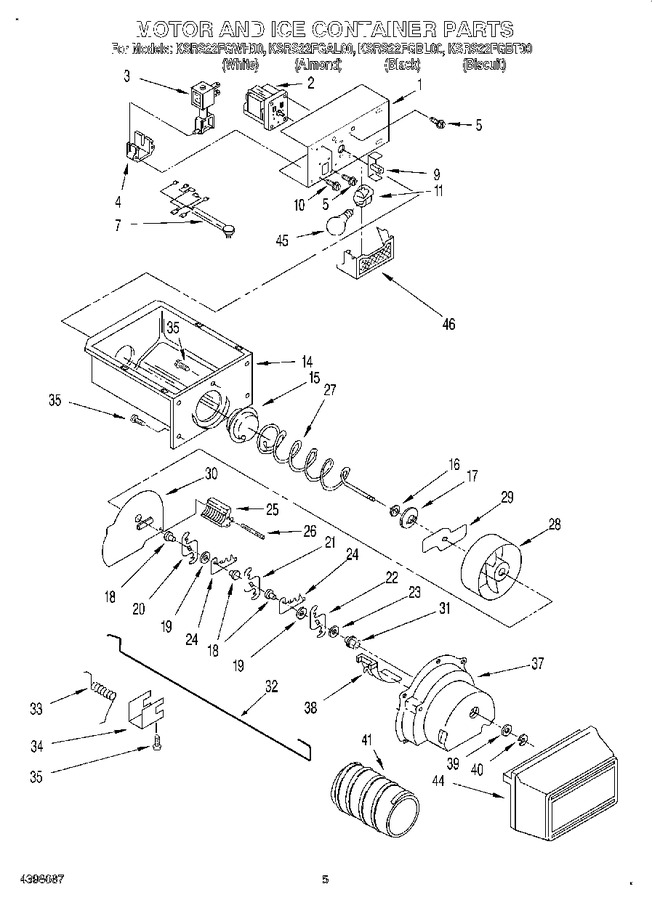

04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 2183728)				$ 102.69
2	WP2188242		Motor, Dispenser   (Replaces: 2188242)				$ 331.82
3	WP2152713		Solenoid Assembly   (Replaces: 2152713)				$ 214.38
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 9.32
5	WP489399		Screw   (Replaces: 489399)				$ 6.26
7	2169490		Wiring Assembly, Ice Dispenser		Appelez-nous	-
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 21.01
10	WP489478		Screw   (Replaces: 489478)				$ 6.98
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
14	WP2196089		Ice Container   (Replaces: 2196089)				$ 188.78
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 23.52
16	1118480		Stop, Cone		Appelez-nous	-
17	1119074		Feeder Cone		Appelez-nous	-
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 10.06
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 12.66
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 77.89
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 78.00
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 78.00
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 19.14
26	489229		Roll Pin				$ 41.54
27	W10422851		Conveyor   (Replaces: 2181956)				$ 149.27
28	4388736		Drum   (Replaces: 2171681)				$ 83.12
29	4388736		Drive Bar   (Replaces: 1118470)				$ 83.12
30	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 29.87
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 6.77
32	W11596045		Control Arm   (Replaces: 2155231)				$ 30.44
33	1119020		Spring, Return				$ 16.40
34	1119021		Retainer Clip, Rod				$ 9.40
35	WP488787		Screw   (Replaces: 488886)				$ 9.52
37	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 111.99
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 6.81
39	489234		Washer, Plain				$ 12.03
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 10.95
41	4317870		Sleeve-auger   (Replaces: 2152021)				$ 116.59
44	2171709		Front Cover, Ice Container				$ 49.81
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 82.21

    View Diagram in Separate Window       Print Part List
