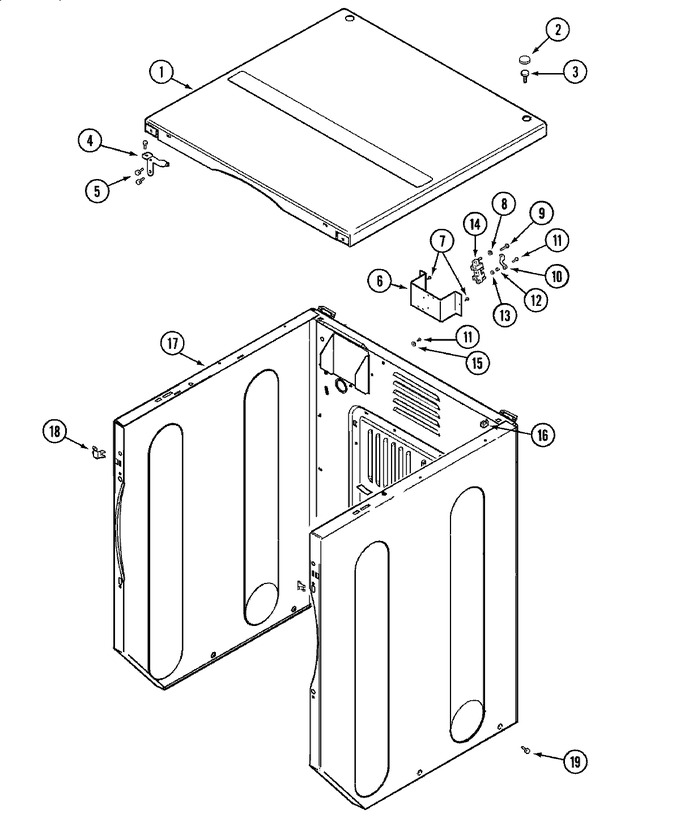

01 - Cabinet-front (upper)
02 - Cabinet-rear
03 - Control Panel
04 - Door (upper)
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information (gas)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33001995 | Cover, Top (wht) | 10 |
|
- | ||||
| 2 | 33001997 | Plug, Hole | 10 |
|
- | ||||
| 3 | 22001883 | Screw | 10 |
|
- | ||||
| 4 | 33001998 | Bracket, Top Cover (lt) | 10 |
|
- | ||||
| 4 | 33001999 | Bracket, Top Cover (rt) | 10 |
|
- | ||||
| 5 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 33001826 | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 7 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | W10850756 | Screw----na (Replaces: 33001245) | 10 |
|
$ 6.98 | ||||
| 15 | 313363 | Washer | 10 |
|
- | ||||
| 16 | WP22001502 | Fastener, U-nut (Replaces: 22001502) | 10 |
|
$ 8.26 | ||||
| 17 | 33002000 | Cabinet (wht) | 10 |
|
- | ||||
| 18 | 33001980 | Clip, Access Panel | 10 |
|
$ 7.64 | ||||
| 19 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 |
