01 - Cabinet-front (upper)

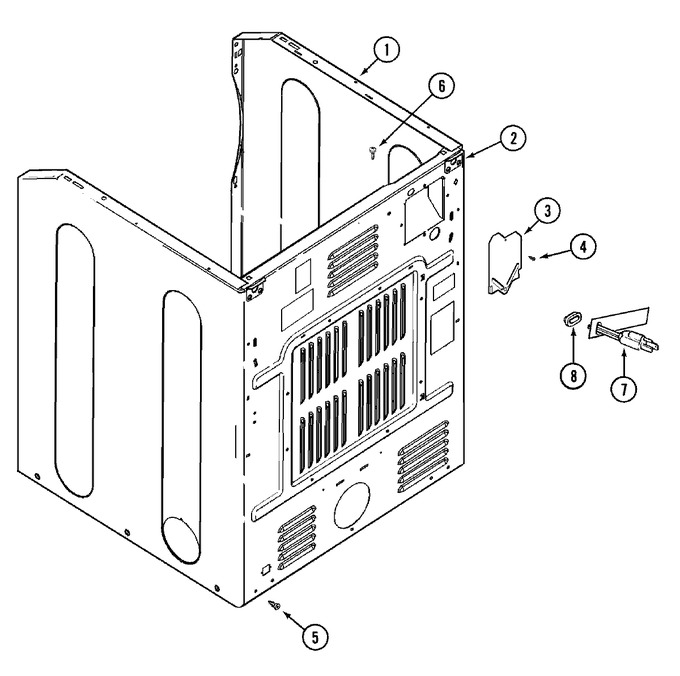

02 - Cabinet-rear
03 - Control Panel
04 - Door (upper)
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information (gas)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002000 | Cabinet (wht) | 10 |
|
- | ||||
| 3 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 4 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 7 | 33001819 | Cord, Power (as Wrapped) | 10 |
|
- | ||||
| 8 | 216183 | Grommet, Cord Export | 10 |
|
- |
