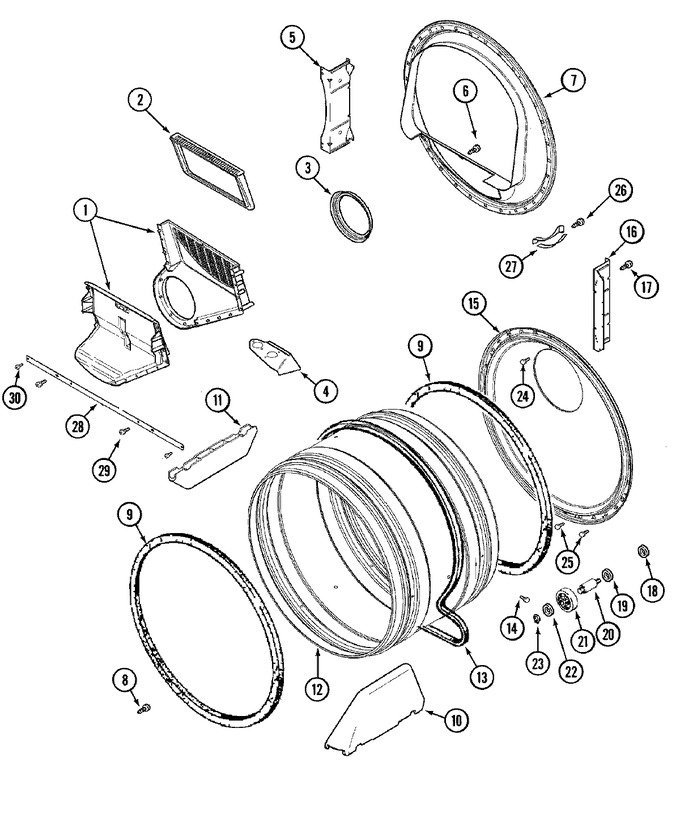

07 - Tumbler
08 - Wiring Information (gas)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33001799 | Outlet Duct Assembly | 10 |
|
$ 81.40 | ||||
| 2 | WP33002790 | Filter, Lint (Replaces: 33001804) | 10 |
|
Immediately | $ 63.23 | |||
| 3 | 33002082 | Seal, Blower | 10 |
|
- | ||||
| 4 | 33001837 | Cover, Thermostat (elec Only) | 10 |
|
- | ||||
| 5 | 33001828 | Support, Tumbler Front | 10 |
|
- | ||||
| 6 | 312311 | Screw----na | 10 |
|
- | ||||
| 7 | 33001802 | Front, Tumbler (w/seal) | 10 |
|
$ 134.30 | ||||
| 8 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 9 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 10 |
|
Immediately | $ 21.39 | |||
| 10 | WP33002032 | Baffle (tall) (Replaces: 33002032) | 10 |
|
Immediately | $ 37.95 | |||
| 11 | WP33001755 | Baffle (short) (Replaces: 33001755) | 10 |
|
Immediately | $ 30.85 | |||
| 12 | 33001794 | Tumbler | 10 |
|
- | ||||
| 13 | WP33002535 | Belt, Tumbler (Replaces: 33001777) | 10 |
|
Immediately | $ 30.78 | |||
| 14 | 33001788 | Screw, Baffle | 10 |
|
- | ||||
| 15 | 33001801 | Back, Tumbler (w/seal) | 10 |
|
$ 162.40 | ||||
| 16 | 33001832 | Support, Back | 10 |
|
- | ||||
| 17 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | WP33001443 | Nut, Hex (roller Shaft) (Replaces: 33001443) | 10 |
|
$ 7.15 | ||||
| 19 | WP312535 | Washer, Spring (roller Shaft) (Replaces: Y313347) | 10 |
|
Immediately | $ 10.25 | |||
| 20 | Y312948 | Shaft, Tumbler Roller | 10 |
|
- | ||||
| 21 | 12001541 | Bearing & Roller Assembly (Replaces: Y303373) | 10 |
|
Immediately | $ 27.92 | |||
| 22 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 10 |
|
Immediately | $ 10.25 | |||
| 23 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 | |||
| 24 | 210932 | Screw, No.8 X 9/16 Ctsk | 10 |
|
- | ||||
| 25 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 26 | WP210720 | Rivet (Replaces: 210720) | 10 |
|
$ 12.14 | ||||
| 27 | 306508 | Tumbler Bearing Kit | 10 |
|
Immediately | $ 20.77 | |||
| 28 | 33002039 | Brace, Tumbler Front | 10 |
|
- | ||||
| 29 | 33001768 | Screw, Shroud | 10 |
|
- | ||||
| 30 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 |
