SELECT A DIAGRAM

01 - Cabinet-front (upper)


02 - Cabinet-rear


03 - Control Panel


04 - Door (upper)


05 - Gas Valve


06 - Motor Drive


07 - Tumbler


08 - Wiring Information (gas)

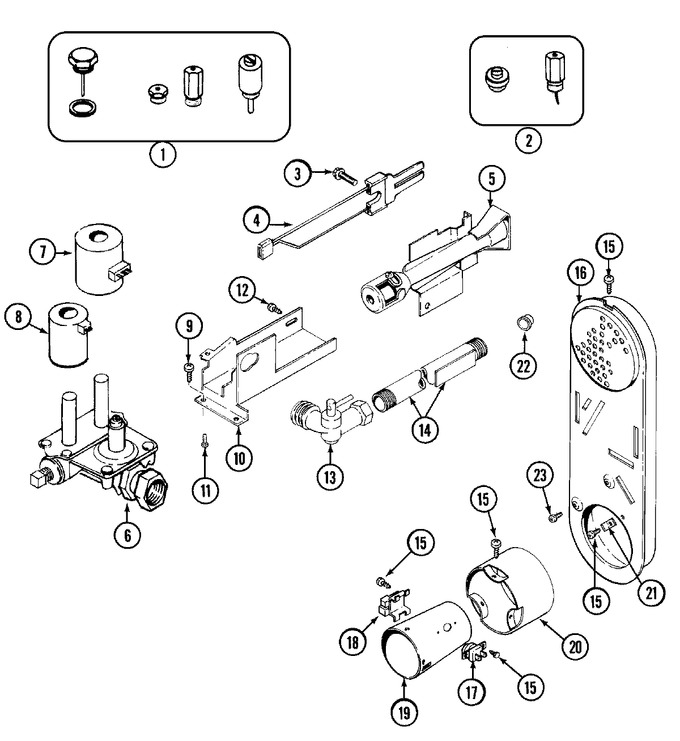

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y308378		Conversion Kit (natural To Lp)	10	Appelez-nous	-
2	Y308377		Conversion Kit (lp To Natural)	10	Appelez-nous	-
3	304971		Screw	10	Appelez-nous	-
4	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)	10		Immediately	$ 42.36
5	WP33002793		Burner Assy.   (Replaces: 33001247)	10			$ 161.35
6	33002056		Plug, Hole	10	Appelez-nous	-
6	307927		Gas Valve - 120v-50hz	10			$ 215.29
7	58804A		Coil, Holding & Booster   (Replaces: 306106)	10		Immediately	$ 28.02
8	279834		Coil, Secondary   (Replaces: 306105)	10		Immediately	$ 29.57
9	Y313561		Screw----na	10			$ 5.27
10	33002055		Bracket, Gas Valve----na	10	Appelez-nous	-
11	WP90767		Screw-gas Valve To Bracket   (Replaces: 314568)	10		Immediately	$ 7.04
11	WP90767		Screw   (Replaces: 314082)	10		Immediately	$ 7.04
12	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
13	306086		Angle Shut Off For Gas Valv	10	Appelez-nous	-
14	33001735		Pipe & Bracket Assy.	10	Appelez-nous	-
15	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
16	33001810		Duct Assy., Inlet (gas)	10	Appelez-nous	-
17	WP303395		Thermostat, Hi-limit (gas)   (Replaces: 303395)	10		Immediately	$ 66.35
18	WP338906		Sensor, Radiant   (Replaces: Y303377)	10		Immediately	$ 46.72
19	33001946		Cone Assy., Combustion	10	Appelez-nous	-
20	304953		Extension F/combustion Cone	10	Appelez-nous	-
21	Y312890		Retainer, Heater Chamber	10	Appelez-nous	-
22	33001693		Cap, Gas Pipe	10	Appelez-nous	-
23	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79

    View Diagram in Separate Window       Print Part List
