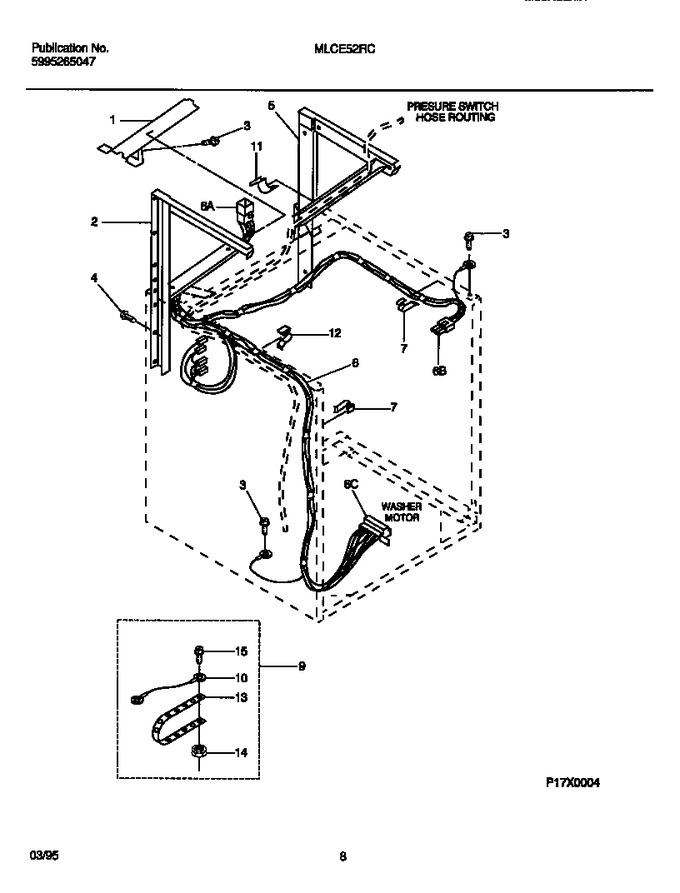

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308101		Cover-channel		Appelez-nous	-
2	5303308102		Support-dryer Lh		Appelez-nous	-
3	636T091P05		Screw-10-16 X 1/2		Appelez-nous	-
4	5308004340		Screw-10-24 X 1/2 (8)		Appelez-nous	-
5	5303308103		Support-dryer Rh		Appelez-nous	-
6	5303308057		Plug-terminal (3-way)		Appelez-nous	-
6	5303308106		Block-disconnect		Appelez-nous	-
6	5303308104		Harness-upper (automatic) (includes Pos. 6a, 6b & 6c)		Appelez-nous	-
6	5303308105		Plug-terminal (12-way)		Appelez-nous	-
7	5303308107		Clip-wiring Harness (4)		Appelez-nous	-
9	5303308108		Kit-grounding		Appelez-nous	-
10	5303308109		Wire-ground		Appelez-nous	-
11	5303308110		Clip-pressure Switch Hose (2)		Appelez-nous	-
12	5303308065		Clip-harness And Hose		Appelez-nous	-
13	5303308111		Strap-ground		Appelez-nous	-
14	5303308112		Nut-hex		Appelez-nous	-
15	636T055P01		Screw-10-24 X 1		Appelez-nous	-
