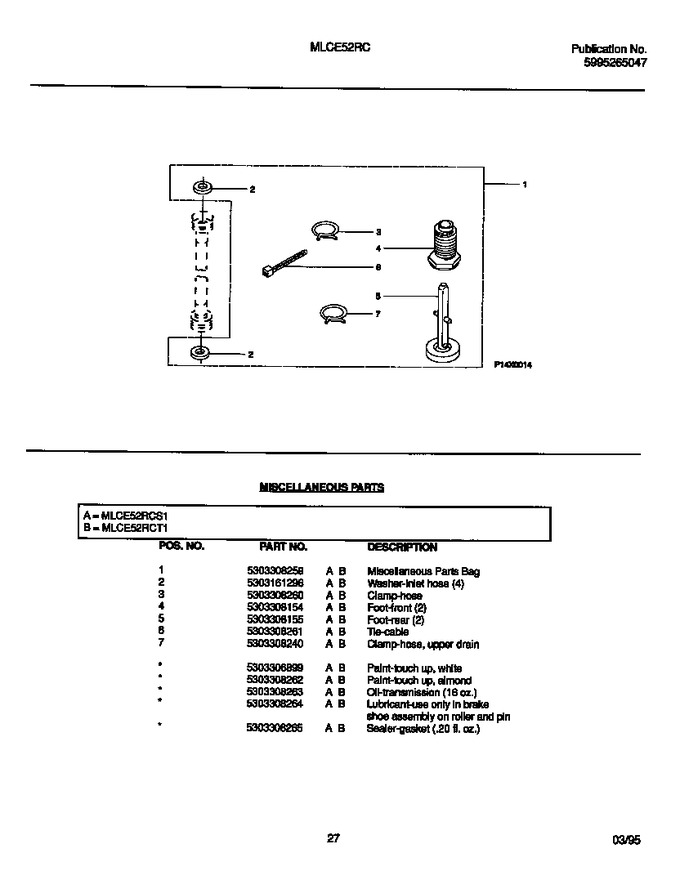

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308259		Miscellaneous Parts Bag		Appelez-nous	-
2	5303161296		Washer-inlet Hose (4)			Immediately	$ 2,372.96
3	5303308260		Clamp-hose		Appelez-nous	-
4	5303308154		Foot-front (2)		Appelez-nous	-
5	5303308155		Foot-rear (2)		Appelez-nous	-
6	5303308261		Tie-cable		Appelez-nous	-
7	5303308240		Clamp-hose, Upper Drain		Appelez-nous	-
*41960	5303306899		Paint-touch Up, White		Appelez-nous	-
*41961	5303308262		Paint-touch Up, Almond		Appelez-nous	-
*41962	5303308263		Oil-transmission (16 Oz.)		Appelez-nous	-
*41963	5303308264		Lubricant-use Only In Brake Shoe Assembly On Roller And		Appelez-nous	-
*41964	5303308265		Sealer-gasket (.20 Fl. Oz.)		Appelez-nous	-
