SELECT A DIAGRAM

01 - Cover


02 - Console And Controls


03 - Cabinet, Base


04 - Dryer-cabinet, Drum, Heater


05 - Dryer Mount


06 - Dryer Door


07 - Washer-cabinet


08 - Washer-top Panel


09 - Washer-motor


10 - Washer-drive


11 - Washer-tubs, Motor


12 - Washer-hoses


13 - Transmission


14 - Hose, Exhaust Extension


15 - Miscellaneous Parts

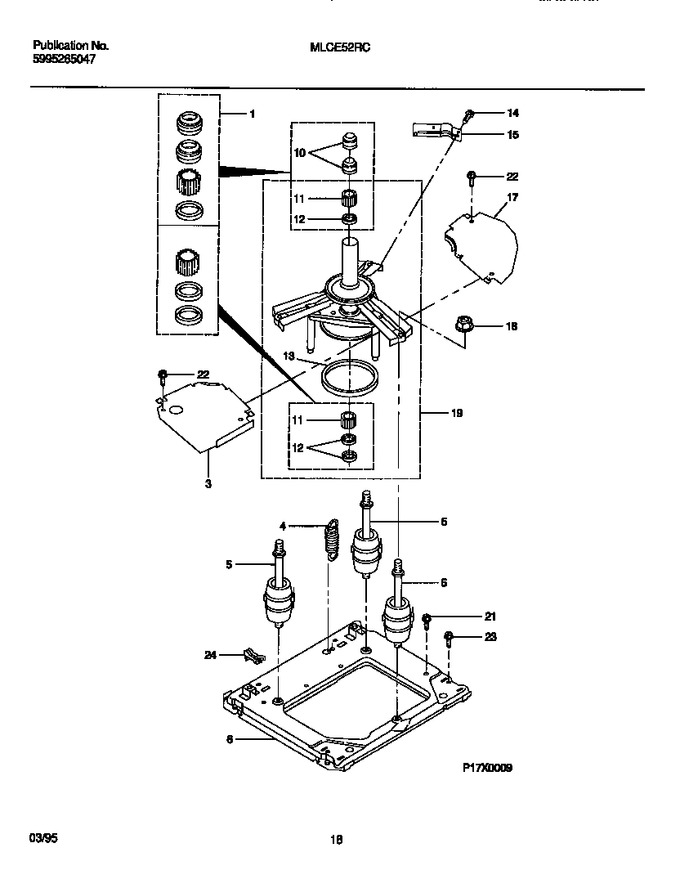

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308202		Centerpost Bearing Kit (includes Pos. 10, 11 & 12)		Appelez-nous	-
3	5303308203		Shield-tub		Appelez-nous	-
4	5303308204		Spring-counterweight		Appelez-nous	-
5	5303308205		Suspension Assembly (3)		Appelez-nous	-
6	5303308206		Base		Appelez-nous	-
10	5303308207		Seal-centerpost (2)		Appelez-nous	-
11	5303308208		Bearing-centerpost (2)		Appelez-nous	-
12	5303308209		Seal-centerpost (3)		Appelez-nous	-
13	5303308210		Ring-sound Deadening		Appelez-nous	-
14	636T091P05		Screw-10-16 X 1/2 (2)		Appelez-nous	-
15	5303308211		Bracket-counterweight Spring		Appelez-nous	-
17	5303308212		Shield-tub		Appelez-nous	-
18	3351094		Nut-1/2-13 (3)		Appelez-nous	-
19	5303308213		Tub Support And Drum		Appelez-nous	-
21	5303308214		Screw-10-16		Appelez-nous	-
22	5303013874		Screw-8a X 3/8 (4)				$ 5.04
23	5303308215		Screw & Washer (base To Cabinet)		Appelez-nous	-
24	5303308216		Block-restraint (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
