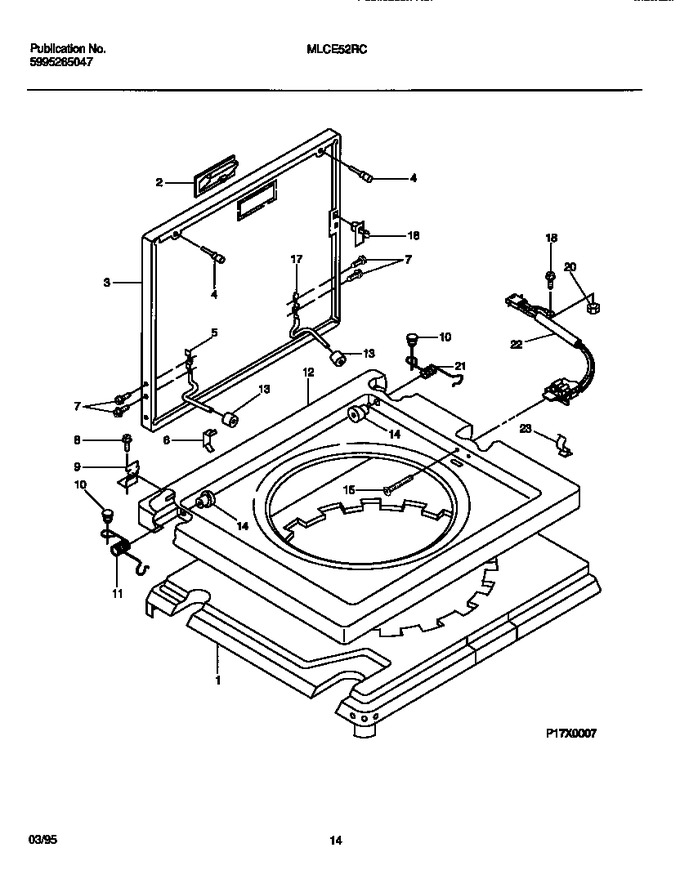

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308157		Shield-barrier		Appelez-nous	-
2	5303308162		Handle-lid, Almond		Appelez-nous	-
3	5303308167		Lid, Almond		Appelez-nous	-
4	5303308170		Bumper-lid (2)		Appelez-nous	-
5	5303308172		Hinge-lid Lh		Appelez-nous	-
6	5303308175		Clip-harness		Appelez-nous	-
7	5303308176		Screw-lid Hinge Mounting (4)		Appelez-nous	-
8	636T091P05		Screw-10-16 X 1/2 (2)		Appelez-nous	-
9	5303308158		Clip-spring (2)		Appelez-nous	-
10	5303308161		Plug-button (2)		Appelez-nous	-
11	5303308163		Spring-lid Lh (includes Pos. 10)		Appelez-nous	-
12	5303308171		Top-almond		Appelez-nous	-
13	5303308173		Bumper-lid Hinge (2)		Appelez-nous	-
14	5303308177		Bearing-lid Hinge (2)		Appelez-nous	-
15	5303308159		Screw & Washer-lid Switch Shield (2)		Appelez-nous	-
16	5303308164		Strike-lid Switch		Appelez-nous	-
17	5303308166		Hinge-lid Rh		Appelez-nous	-
18	5303308169		Screw-ground		Appelez-nous	-
20	5303308174		Nut-ground Screw		Appelez-nous	-
21	5303308178		Spring-lid Rh (includes Pos. 10)		Appelez-nous	-
22	WP3355806		Switch-lid   (Replaces: 5303308179)			Immediately	$ 40.97
23	5303308110		Clip-harness Routing		Appelez-nous	-
