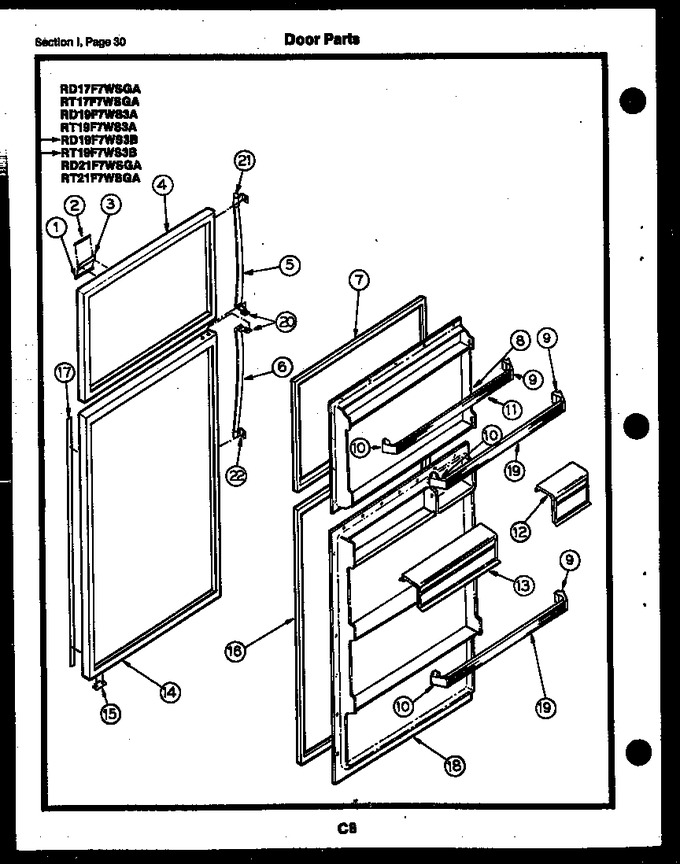

15 - Door Parts
16 - Cabinet Parts
17 - Cabinet Parts
18 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G175393-01 | Label, Nameplate, Lower |
|
- | |||||
| 2 | G175118-02 | Label, Nameplate, Upper |
|
- | |||||
| 3 | G175117-02 | Nameplate |
|
- | |||||
| 4 | G178690 | Panel - Exterior Door - Textured |
|
- | |||||
| 5 | G170495-24 | Handle, Freezer Door |
|
- | |||||
| 6 | G170495-24 | Handle, Refrigerator Door |
|
- | |||||
| 7 | G180547-12 | Gasket - Freezer Door |
|
- | |||||
| 8 | G184903-01 | Panel, Interior Door |
|
- | |||||
| 9 | G152888-04 | Support, Rh Door Racks (4) |
|
- | |||||
| 10 | G152887-04 | Support, Lh Door Racks (4) |
|
- | |||||
| 11 | G162887-18 | Rack - Freezer (2) |
|
- | |||||
| 12 | G178500-17 | Door - Dairy |
|
- | |||||
| 13 | G178500-17 | Door - Dairy |
|
- | |||||
| 14 | G178694 | Panel - Exterior Door - Textured |
|
- | |||||
| 15 | G155072 | Stop, Door (2) |
|
- | |||||
| 16 | G180547-13 | Gasket - Refrig. Door |
|
- | |||||
| 17 | G167150-12 | Trim, Refrig. Door Side |
|
- | |||||
| 18 | G184896-01 | Panel, Interior Door |
|
- | |||||
| 20 | G170507-01 | End, Handle (2) |
|
- | |||||
| 21 | G179800 | Handle End-top |
|
- | |||||
| 22 | G179801 | Handle End-bottom |
|
- | |||||
| *21387 | G169332-01 | Button Plug, White |
|
- | |||||
| *21388 | G162977-01 | Button Plug-white |
|
- | |||||
| *21389 | G168981-01 | Kit, Door Conversion |
|
- | |||||
| 14A | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 18A | G162585 | Screw |
|
- | |||||
| 19A | G162887-21 (2) | Rack - Refrigerator |
|
- | |||||
| 3A | G141624-04 | Tape, Frame To Door |
|
- | |||||
| 4A | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 6A | G185566 | Screw |
|
- | |||||
| 8A | G162585 (22) | Screw - Interior Panel (22) |
|
- |
