15 - Door Parts
16 - Cabinet Parts
17 - Cabinet Parts

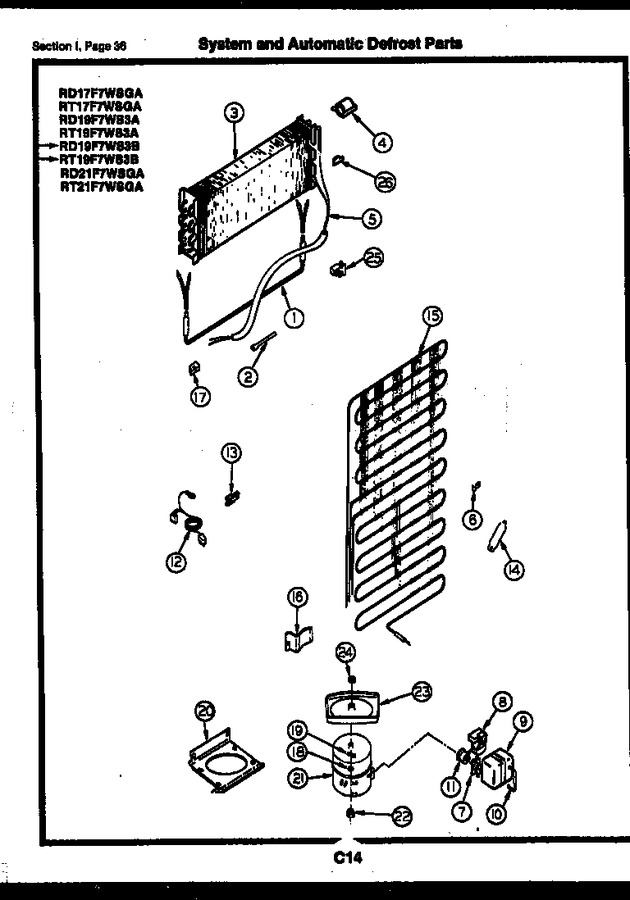

18 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G178425-01 | Heater - Defrost (non-illustrated) |
|
- | |||||
| 2 | G165546 | Strap, Heater (2) |
|
- | |||||
| 3 | G162506 | Evaporator (non-illustrated) |
|
- | |||||
| 4 | G162690-01 | Thermostat - Defrost (non-illustrated) |
|
- | |||||
| 5 | G177532 | Heat Exchanger (non-illustrated) |
|
- | |||||
| 6 | G101747 | Clamp |
|
- | |||||
| 8 | G182225-12 | Relay (non-illustrated) |
|
- | |||||
| 9 | G185792 | Cover, Terminal |
|
- | |||||
| 10 | G185790 | Strap Bale |
|
- | |||||
| 11 | G185797 | Overload (non-illustrated) |
|
- | |||||
| 12 | G162549-01 | Cord, Service |
|
- | |||||
| 13 | G27669 | Clamp Cable |
|
- | |||||
| 14 | G177375 | Drier (non-illustrated) |
|
- | |||||
| 15 | G162739 | Condenser (non-illustrated) |
|
- | |||||
| 16 | G164637 | Bracket, Cond. Mtg. (4) |
|
- | |||||
| 17 | G162807 | Block Evap, L.h. |
|
- | |||||
| 18 | G164634 | Washer-comp Mtg (4) |
|
- | |||||
| 19 | G163204 | Clip-comp Mtg (4) |
|
- | |||||
| 20 | G182757 | Plate Comp. Mtg |
|
- | |||||
| 21 | G185831 | Compressor Package (non-illustrated) |
|
- | |||||
| 22 | G177617 | Grommet Comp. Mtg (4) |
|
- | |||||
| 23 | G171778 | Pan Defrost |
|
- | |||||
| 24 | G164958 | Nut, Lock |
|
- | |||||
| 25 | G185299 | Block, Evaporator, Rh |
|
- | |||||
| 26 | G185276 | Plug Evap, Insul R.h. |
|
- | |||||
| *21606 | G179024 | Hot Tube Repair Kit |
|
- | |||||
| 14A | G162585 | Screw |
|
- | |||||
| 14B | G164820 | Washer, No. 10 |
|
- | |||||
| 6A | G160578 (6) | Screw - Clamps (6) |
|
- |
