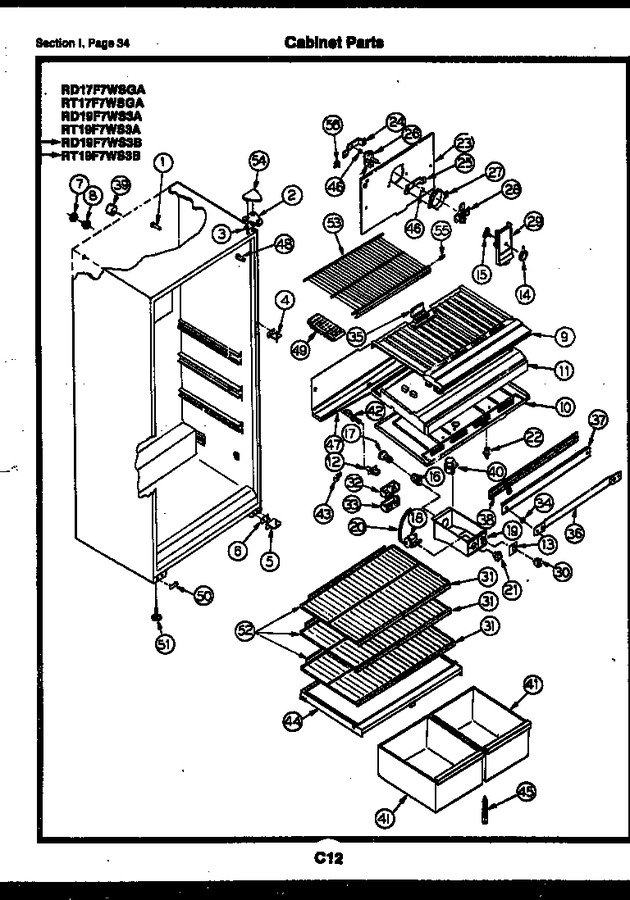

15 - Door Parts
16 - Cabinet Parts
17 - Cabinet Parts
18 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | G177727-05 | Switch - Slide (non-illustrated) |
|
- | |||||
| 31 | G141727-44 | Trim - Shelf (3) |
|
- | |||||
| 32 | G162675 | Deflector Air |
|
- | |||||
| 33 | G162178 | Cover, Air Deflector |
|
- | |||||
| 34 | G490082 | Spacer Mullion Mounting (2) |
|
- | |||||
| 35 | G168866 | Pad Foam |
|
- | |||||
| 36 | G490087 | Strap, Mullion Mounting |
|
- | |||||
| 37 | G180373 | Mullion |
|
- | |||||
| 38 | G177254 | Heater, Mullion |
|
- | |||||
| 39 | G85642 | Tube, Ferrule |
|
- | |||||
| 40 | G174820 | Timer - Defrost (non-illustrated) |
|
- | |||||
| 41 | G176639-16 | Pan - Storage - Fresh Fruits |
|
- | |||||
| 42 | G184920-01 | Tube, Defrost Drain |
|
- | |||||
| 43 | G101747 | Clamp |
|
- | |||||
| 44 | G490064-01 | Cover, Crisper |
|
- | |||||
| 45 | G166310-02 | Support, Crisper Cover |
|
- | |||||
| 46 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 47 | G177534 | Trough Drain |
|
- | |||||
| 48 | G179684-01 | Trim - Corner Cabinet (4) |
|
- | |||||
| 49 | G156376-13 | Tray, Ice (2) |
|
- | |||||
| 50 | G166912 | Button Plug-lower Lh Hinge Hole |
|
- | |||||
| 51 | G185713 | Screw, Leveling (2) |
|
- | |||||
| 52 | G179139-03 | Shelf - Sliding (3) |
|
- | |||||
| 53 | G184572-04 | Shelf - Freezer |
|
- | |||||
| 54 | G183558-01 | Cover - Top Hinge |
|
- | |||||
| 55 | G166495-01 | Cap Protector - Freezer Shelf (2) |
|
- | |||||
| 56 | G164571 | Bracket, Connector |
|
- | |||||
| *21530 | G174818 | Harness, Wiring |
|
- | |||||
| *21531 | G162827-12 | Button, Decorative Plug |
|
- | |||||
| *21533 | H162892-01 | Button Plug Liner Holes (2) |
|
- | |||||
| *21535 | G162659 (3) | Button Plug Ice Maker & Freezer Shelf Mounting Holes (8) |
|
- | |||||
| *21537 | G185324 | Instruction - Manual |
|
- | |||||
| *21540 | G186765 | Sheet - Service Data |
|
- | |||||
| *21541 | G183100-54 | Label, Energy Guide |
|
- | |||||
| *21543 | G490004-02 | Base, Cabinet |
|
- | |||||
| 31A | G138399 | Clip - Shelf Trim (3) |
|
- | |||||
| 34A | G166847 | Washer, Mullion Mtg. (4) |
|
- | |||||
| 40A | G105289 | Screw |
|
- | |||||
| 41A | G490015-34 | Pan - Storage - Fresh Vegetables |
|
- | |||||
| 42A | G176853 | Ring, Seal |
|
- | |||||
| 44A | G180108-04 | Gasket, Crisper |
|
- | |||||
| 51A | G183073 | Nut, Anchor (2) |
|
- | |||||
| 56A | G162585 | Screw |
|
- |
