15 - Door Parts

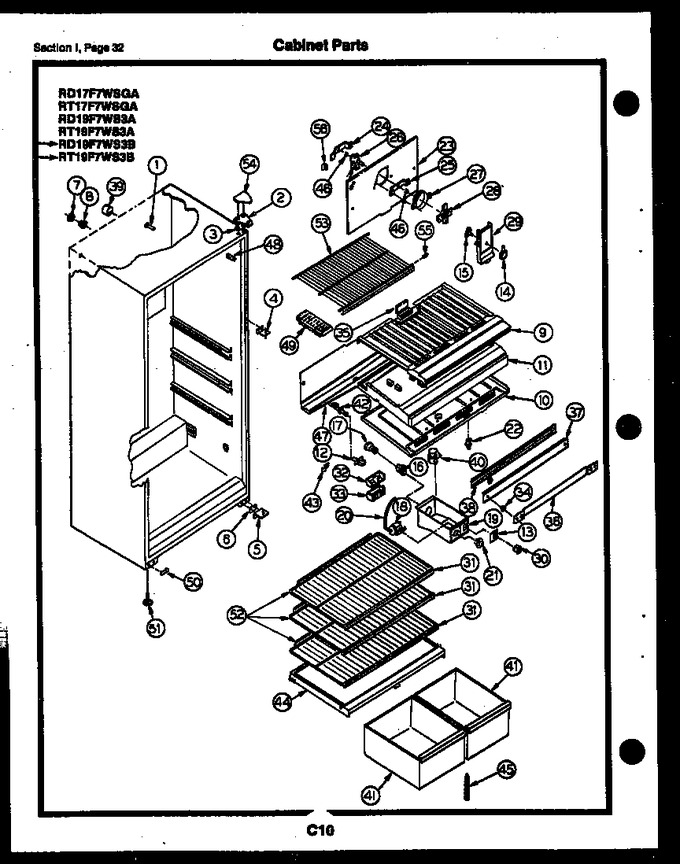

16 - Cabinet Parts
17 - Cabinet Parts
18 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 2 | G183714 | Bracket, Hinge Top |
|
- | |||||
| 3 | G183861 | Shim, Upper Hinge |
|
- | |||||
| 4 | G163207 | Bracket-center Hinge |
|
- | |||||
| 5 | G181019 | Bracket, Lower Hinge |
|
- | |||||
| 6 | G163203 | Shim, Lower Hinge |
|
- | |||||
| 7 | G174733 | Ferrule, Inner |
|
- | |||||
| 8 | G174734 | Ferrule Outer |
|
- | |||||
| 9 | G490022-02 | Bottom - Freezer |
|
- | |||||
| 10 | G490021-02 | Top, Refrigerator |
|
- | |||||
| 11 | G176777 | Divider, Compartment |
|
- | |||||
| 12 | G162179 | Spout Drain Tube |
|
- | |||||
| 13 | G185865 | Label, Box |
|
- | |||||
| 14 | G162747-06 | Knob - Damper Control |
|
- | |||||
| 15 | G162661 | Damper Fan Cover |
|
- | |||||
| 16 | G168302 | Socket Light |
|
- | |||||
| 17 | G25806 | Bulb Light |
|
- | |||||
| 18 | G162667-10 | Thermostat - Control (non-illustrated) |
|
- | |||||
| 19 | G174765-03 | Box, Control |
|
- | |||||
| 20 | G142176-11 | Tube Plastic |
|
- | |||||
| 21 | G174759-01 | Knob, Control |
|
- | |||||
| 22 | G162672 | Switch - Light (non-illustrated) |
|
- | |||||
| 23 | G177529 | Cover, Coil |
|
- | |||||
| 24 | G162048 | Bracket, Rear Motor Mtg. |
|
- | |||||
| 25 | G162049 | Bracket, Front Motor Mtg. |
|
- | |||||
| 26 | G173301 | Motor - Blower (non-illustrated) |
|
- | |||||
| 27 | G167217 | Ring, Fan Orifice |
|
- | |||||
| 28 | G174705 | Fan |
|
- | |||||
| 29 | G163061-76 | Cover, Fan |
|
- | |||||
| 10A | G162673 | Screw (3) |
|
- | |||||
| 12A | G185279 | Pin Push (2) |
|
- | |||||
| 15A | G162662 | Nut, Damper Mounting |
|
- | |||||
| 18A | G107080 | Screw |
|
- | |||||
| 23A | G183147 | Screw, Cover (4) |
|
- | |||||
| 25A | G163980 | Screw - 8 X 5/8 (3) |
|
- | |||||
| 27A | G167542 | Nut, Orifice (2) |
|
- | |||||
| 29A | G183147 | Screw - 38 X 1/2 (2) |
|
- | |||||
| 2A | G167103 | Screw, Bracket (2) |
|
- | |||||
| 2B | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 2C | G174747-01 | Button-plug-white |
|
- | |||||
| 2D | G164355 | Washer (nylon) |
|
- | |||||
| 4A | G183103 | Screw, Hinge And Mullion (4) |
|
- | |||||
| 4B | G142220 | Pin |
|
- | |||||
| 5A | G166505 | Pin, Lower Hinge |
|
- | |||||
| 5B | G181020 | Screw, Hinge To Base (2) |
|
- | |||||
| 5C | G157591 | Plate, Tapping (2) |
|
- |
