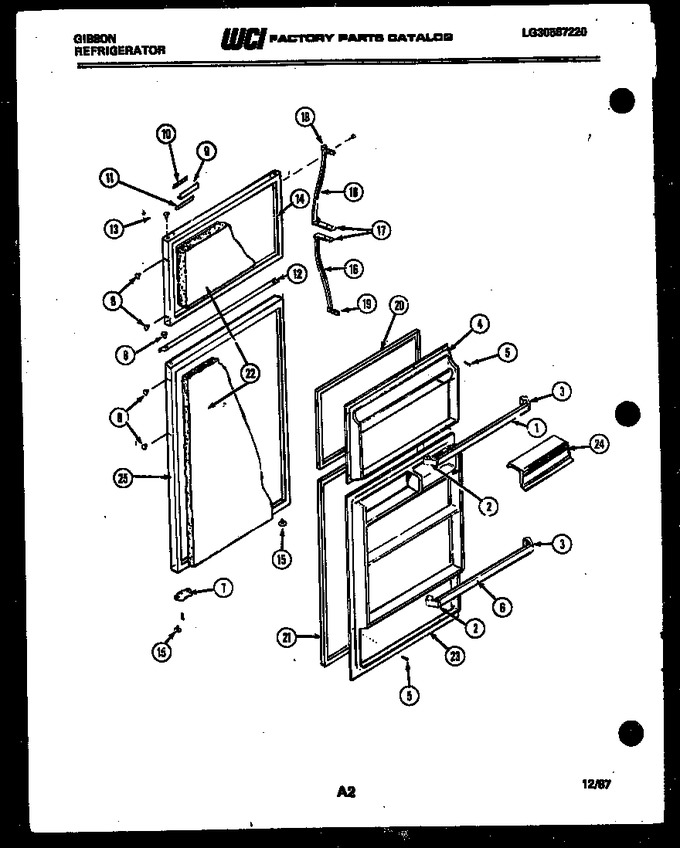

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G162887-18 | Rack-frzr (2) |
|
- | |||||
| 2 | G152887-04 | Support Ls (4) |
|
- | |||||
| 3 | G152888-04 | Support Rs (4) |
|
- | |||||
| 4 | G184903-01 | Inner Panel |
|
- | |||||
| 5 | G144049 | Screw |
|
- | |||||
| 6 | G162887-21 | Rack, Refr (2) |
|
- | |||||
| 7 | G155072 | Door Stop-refr |
|
- | |||||
| 8 | G162977-11 | Button Plug-almond |
|
- | |||||
| 8 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 8 | G162977-01 | Button Plug-white |
|
- | |||||
| 8 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 8 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 9 | G175117-02 | Nameplate |
|
- | |||||
| 10 | G188378-02 | Label, Upper |
|
- | |||||
| 11 | G175393-01 | Label, Lower |
|
- | |||||
| 12 | G167150-12 | Trim-refr Door |
|
- | |||||
| 13 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 13 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 13 | G169332-01 | Button Plug, White |
|
- | |||||
| 13 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 13 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 14 | G178690-08 | Outer Panel-avoc |
|
- | |||||
| 14 | G178690-11 | Outer Panel-almd |
|
- | |||||
| 14 | G178690-10 | Outer Panel-cofe |
|
- | |||||
| 14 | G178690-09 | Outer Panel-weat |
|
- | |||||
| 14 | G178690 | Outer Panel-whte |
|
- | |||||
| 15 | G183138 | Bearing-hng (8) |
|
- | |||||
| 16 | G170495-24 | Grip-handle (2) |
|
- | |||||
| 17 | G187329-01 | End, Handle (2) |
|
- | |||||
| 18 | G179800 | End-handle |
|
- | |||||
| 19 | G179801 | End-handle |
|
- | |||||
| 20 | G186932-12 | Gasket-frzr |
|
- | |||||
| 21 | G186932-13 | Gasket-refr |
|
- | |||||
| 22 | G89643 | Insulation (bulk) |
|
- | |||||
| 23 | G184896-01 | Inner Panel |
|
- | |||||
| 24 | G178500-21 | Door-dairy (2) |
|
- | |||||
| 25 | G178694-08 | Outer Panel-avoc |
|
- | |||||
| 25 | G178694-10 | Outer Panel-cofe |
|
- | |||||
| 25 | G178694-09 | Outer Panel-weat |
|
- | |||||
| 25 | G178694 | Outer Panel-whte |
|
- | |||||
| 25 | G178694-11 | Outer Panel-almd |
|
- | |||||
| 19A | G185566 | Screw |
|
- | |||||
| 7A | G155072 | Door Stop-frzr (non-illustrated) |
|
- | |||||
| 7B | G185566 | Screw |
|
- | |||||
| 9A | G153407-60 | Tape, Nameplate (non-illustrated) |
|
- |
