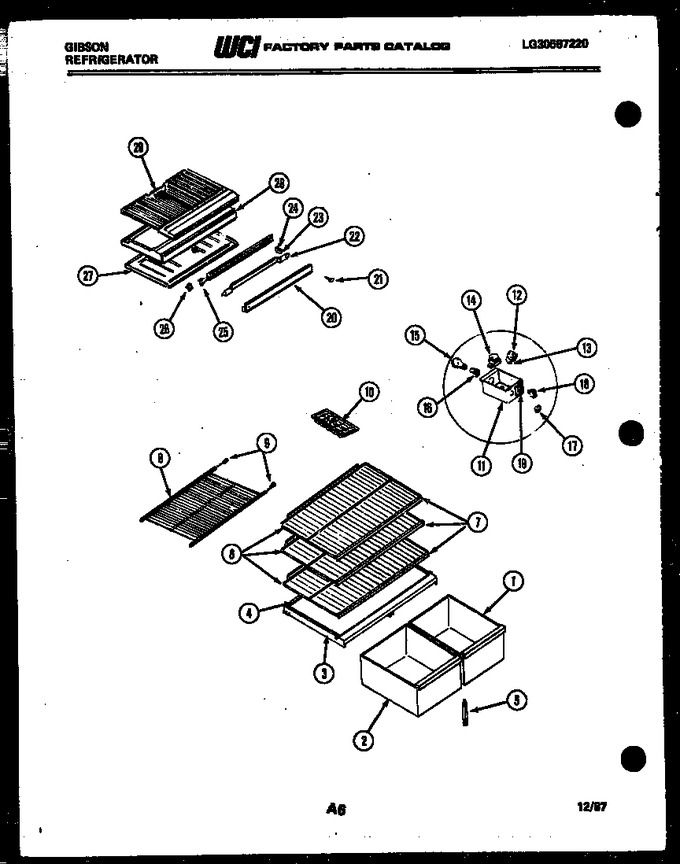

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G490015-34		Pan-crisper Rs		Appelez-nous	-
2	G176639-16		Pan-crisper Ls		Appelez-nous	-
3	G490064-01		Cover-pan		Appelez-nous	-
4	G180108-04		Gasket, Cover		Appelez-nous	-
5	G166310-02		Support, Cover		Appelez-nous	-
6	G179139-03		Shelf-refr (3)		Appelez-nous	-
7	G141727-44		Trim - Shelf (3)		Appelez-nous	-
8	G184572-04		Shelf-frzr		Appelez-nous	-
9	G166495-01		End Cap (2)		Appelez-nous	-
10	G156373-13		Ice Tray (2)		Appelez-nous	-
11	G174765-03		Box, Control		Appelez-nous	-
12	G162205-11		Control Temp.		Appelez-nous	-
13	G142176-11		Tube Plastic		Appelez-nous	-
14	G187484		Timer		Appelez-nous	-
15	G165723		Light Bulb		Appelez-nous	-
16	G168302		Light Socket		Appelez-nous	-
17	G174759-01		Knob, Control		Appelez-nous	-
18	G178402-05		Switch, Slide		Appelez-nous	-
19	G185865		Label-cont Box		Appelez-nous	-
20	G180373-11		Mullion-almd		Appelez-nous	-
20	G180373-01		Mullion-whte		Appelez-nous	-
20	G180373-08		Mullion-avoc		Appelez-nous	-
20	G180373-09		Mullion-weat		Appelez-nous	-
20	G180373-10		Mullion-cofe		Appelez-nous	-
21	G183103		Screw-mtg (4)		Appelez-nous	-
22	G490087		Strap-muln-mtg		Appelez-nous	-
23	G166847		Washer-steel (4)		Appelez-nous	-
24	G490082		Spacer (2)		Appelez-nous	-
25	G177254		Heater, Mullion		Appelez-nous	-
26	G162672		Switch Light		Appelez-nous	-
27	G490021-02		Top-refr.		Appelez-nous	-
28	G176777		Divider		Appelez-nous	-
29	G185912		Bottom-frzr		Appelez-nous	-
*36941	G174818		Wiring Harness		Appelez-nous	-
11A	G187363		Screw		Appelez-nous	-
12A	G107080		Screw		Appelez-nous	-
14A	G105289		Screw		Appelez-nous	-
27A	G162673		Screw-mtg (3) (non-illustrated)		Appelez-nous	-
7A	G138399		Clip-shelf (non-illustrated)		Appelez-nous	-
