SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports

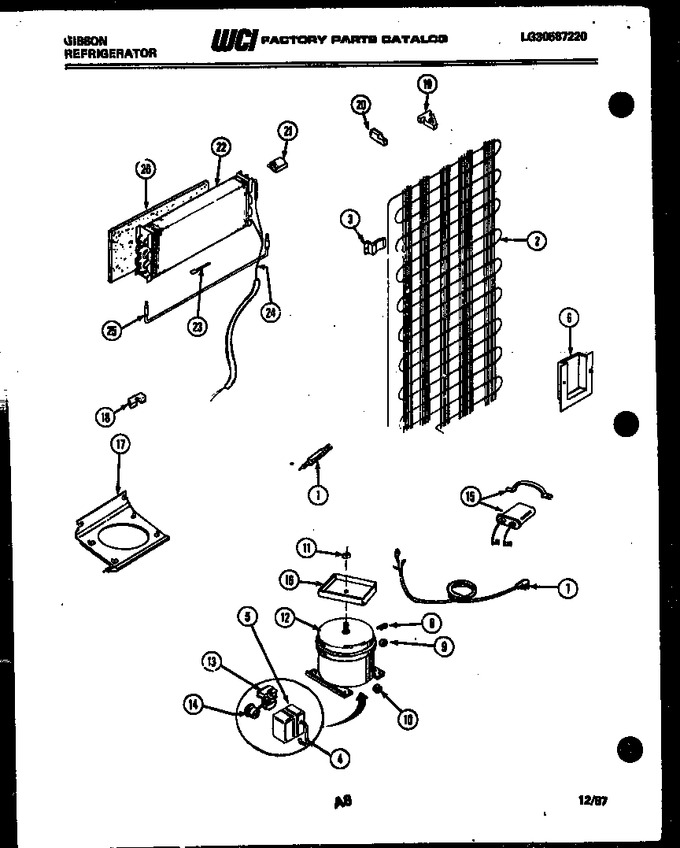

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186717		Drier		Appelez-nous	-
2	G162739		Condenser		Appelez-nous	-
3	G164637		Bracket-mtg (4)		Appelez-nous	-
4	G166057		Strap, Bale		Appelez-nous	-
5	G166056		Cover-term.		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G162549-01		Cord, Service		Appelez-nous	-
8	G163204		Clip (4)		Appelez-nous	-
9	G164634		Washer (4)		Appelez-nous	-
10	G177617		Grommet (4)		Appelez-nous	-
11	G164958		Nut, Lock		Appelez-nous	-
12	G189457		Compr W/ Elec		Appelez-nous	-
13	G182225-18		Relay		Appelez-nous	-
14	G188877		Overload		Appelez-nous	-
15	G188885-02		Capacitor, Run		Appelez-nous	-
16	G184715		Pan, Defrost		Appelez-nous	-
17	G184599		Plate-compr Mtg		Appelez-nous	-
18	G188375		Block-insul Ls		Appelez-nous	-
19	G185299		Block-insul Rs		Appelez-nous	-
20	G185276		Plug, Block		Appelez-nous	-
21	G162690-01		Thermostat-dfr		Appelez-nous	-
22	G164572		Evaporator		Appelez-nous	-
23	G165546		Strap-aluminum		Appelez-nous	-
24	G177531		Heat Exchanger		Appelez-nous	-
25	G178425-01		Heater, Defrost		Appelez-nous	-
26	G166511-01		Insulator		Appelez-nous	-
*37008	G167234		Pan Retainer Kit		Appelez-nous	-
15A	G188897		Strap-capacitor		Appelez-nous	-
26A	G166062-01		Harness-compr		Appelez-nous	-
26B	G189383		Hot Tube Repr Kit		Appelez-nous	-
26C	G169873		Sound Tape		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
