02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

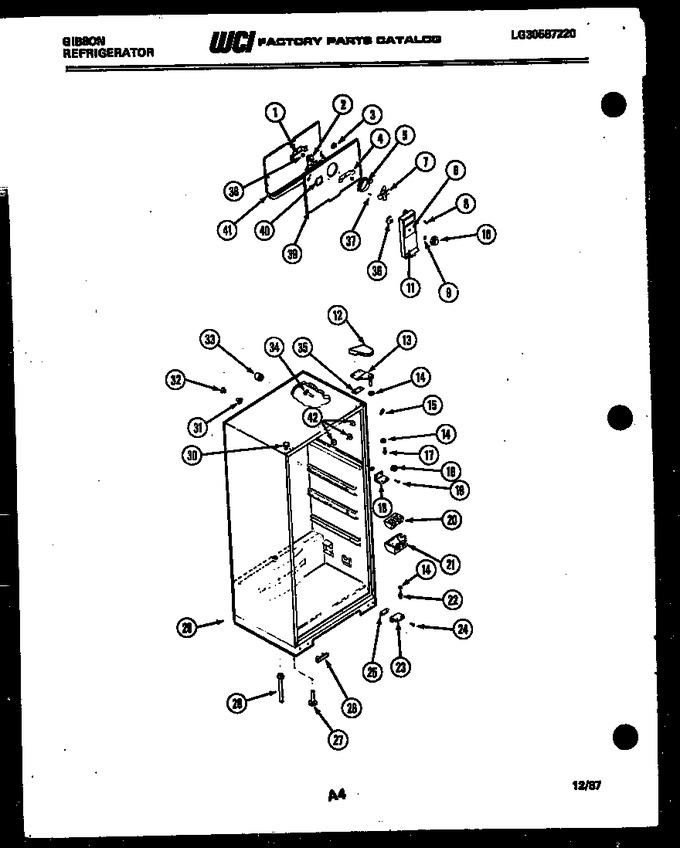

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185303 | Bracket-rear |
|
- | |||||
| 2 | G173301 | Motor Fan |
|
- | |||||
| 3 | G164571 | Brkt, Connector |
|
- | |||||
| 4 | G185302 | Bracket-front |
|
- | |||||
| 5 | G167217 | Ring-orifice |
|
- | |||||
| 6 | G186232 | Label, Fan Cover |
|
- | |||||
| 7 | G174705 | Fan Blade |
|
- | |||||
| 8 | G187363 | Screw |
|
- | |||||
| 9 | G162662 | Push-nut |
|
- | |||||
| 10 | G168702 | Knob-dampr Cont |
|
- | |||||
| 11 | G163061-76 | Cover, Fan |
|
- | |||||
| 12 | G183558-08 | Cover-hng Avoc. |
|
- | |||||
| 12 | G183558-11 | Cover-hng Almd |
|
- | |||||
| 12 | G183558-01 | Cover-hng Whte |
|
- | |||||
| 12 | G183558-10 | Cover-hng Cofe |
|
- | |||||
| 12 | G183558-09 | Cover-hng Weat |
|
- | |||||
| 13 | G183714 | Hinge-top |
|
- | |||||
| 14 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 15 | G179684-11 | Corner Trim (almd) |
|
- | |||||
| 15 | G179684-08 | Corner Trim-avoc |
|
- | |||||
| 15 | G179684-10 | Corner Trim-cofe |
|
- | |||||
| 15 | G179684-09 | Corner Trim-weat |
|
- | |||||
| 15 | G179684-01 | Corner Trim-whte |
|
- | |||||
| 16 | G164355 | Washer-ctr Hng |
|
- | |||||
| 17 | G142220 | Pin |
|
- | |||||
| 18 | G163207 | Bracket-ctr Hng |
|
- | |||||
| 19 | G183103 | Screw, Hng Mtg |
|
- | |||||
| 20 | G162675 | Air Deflector |
|
- | |||||
| 21 | G162178 | Cover, Deflector |
|
- | |||||
| 22 | G166505 | Pin-btm Hng |
|
- | |||||
| 23 | G191474 | Hinge Brkt-btm |
|
- | |||||
| 24 | G181020 | Screw-mtg (2) |
|
- | |||||
| 25 | G163203 | Shim-btm Hng |
|
- | |||||
| 26 | G166912 | Plug-hng Hole |
|
- | |||||
| 27 | G185713 | Level Screw |
|
- | |||||
| 28 | G184920-01 | Tube, Drain |
|
- | |||||
| 29 | G490004-02 | Base, Cabinet |
|
- | |||||
| 30 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 30 | G174747-01 | Button-plug-white |
|
- | |||||
| 30 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 30 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 30 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 31 | G174733 | Ferrule, Inner |
|
- | |||||
| 32 | G174734 | Ferrule Outer |
|
- | |||||
| 33 | G85642 | Tube, Rubber |
|
- | |||||
| 34 | G163669 | Sprt-coil Cov (2) |
|
- | |||||
| 35 | G183861 | Shim-top Hng |
|
- | |||||
| 36 | G162661 | Damper |
|
- | |||||
| 37 | G144049 | Screw |
|
- | |||||
| 38 | G157666 | Bushing (2) |
|
- | |||||
| 39 | G177529 | Cover, Coil |
|
- | |||||
| 40 | G162827-12 | Plug-decorative |
|
- | |||||
| 41 | G177534 | Trough Drain |
|
- | |||||
| 42 | G167565 | Grommet Rs (4) |
|
- | |||||
| *36864 | G176993 | Grommet-ls (4) |
|
- | |||||
| *36866 | G187599 | Plug-ice Maker Holes (3) |
|
- | |||||
| *36866 | G162892-01 | Plug-liner (2) |
|
- | |||||
| 13A | G167103 | Screw-mtg (2) (non-illustrated) |
|
- | |||||
| 13B | G179797 | Plate Tapping (non-illustrated) |
|
- | |||||
| 19A | G166847 | Washer-steel (non-illustrated) |
|
- | |||||
| 24A | G179797 | Plate Tapping (non-illustrated) |
|
- | |||||
| 27A | G183073 | Anchor Nut (non-illustrated) |
|
- | |||||
| 28A | G162179 | Spout-drain (non-illustrated) |
|
- | |||||
| 28B | G185279 | Push-pin-mtg (2) (non-illustrated) |
|
- | |||||
| 28C | G176853 | Seal Ring (non-illustrated) |
|
- | |||||
| 3A | G162585 | Screw |
|
- |
