SELECT A DIAGRAM

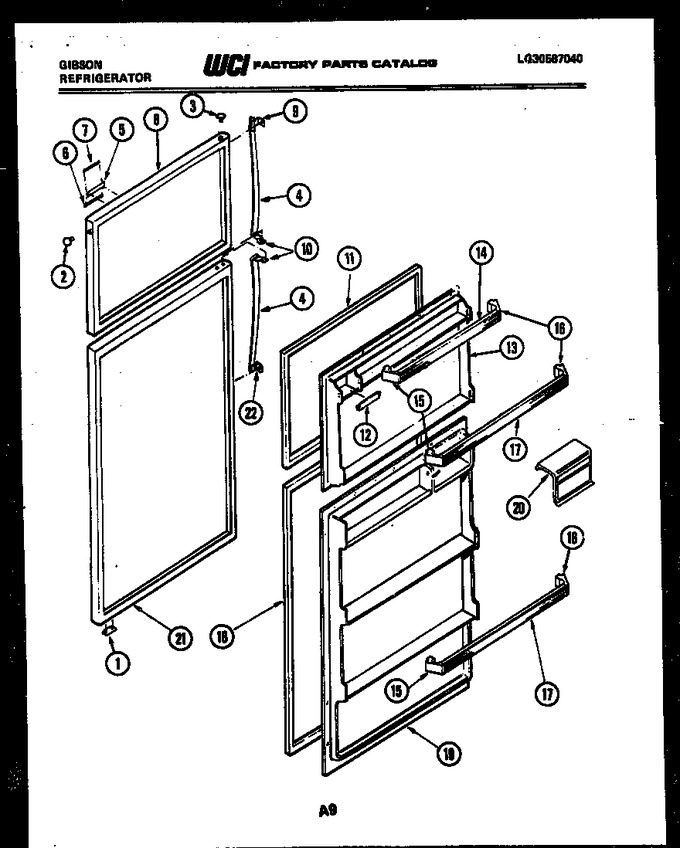

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - Ice Maker Parts


06 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G155072		Stop,door		Appelez-nous	-
2	G162977-11		Button Plug-almond		Appelez-nous	-
2	G162977-08		Button Plug-avocado		Appelez-nous	-
2	G162977-01		Button Plug-white		Appelez-nous	-
2	G162977-09		Button Plug-wheat		Appelez-nous	-
2	G162977-10		Button Plug-coffee		Appelez-nous	-
3	G169332-09		Button Plug, Wheat		Appelez-nous	-
3	G169332-10		Button-plug, Coffee		Appelez-nous	-
3	G169332-08		Button Plug-avocado		Appelez-nous	-
3	G169332-01		Button Plug, White		Appelez-nous	-
3	G169332-11		Button Plug, Almond		Appelez-nous	-
4	G170495-24		Grip-hndl		Appelez-nous	-
5	G175117-02		Nameplate		Appelez-nous	-
6	G175393-01		Label Lwr		Appelez-nous	-
7	G186378-02		Label-upr		Appelez-nous	-
8	G178690-08		Panel-avoc		Appelez-nous	-
8	G178690		Panel-whte		Appelez-nous	-
8	G178690-11		Panel-almd		Appelez-nous	-
8	G178690-10		Panel-cofe		Appelez-nous	-
8	G178690-09		Panel-weat		Appelez-nous	-
9	G179800		End-hndl-top		Appelez-nous	-
10	G187329-01		End-hndl (2)		Appelez-nous	-
11	G186932-12		Gasket		Appelez-nous	-
12	G187492-01		Rack-juice		Appelez-nous	-
13	G187493-02		Panel, Inner		Appelez-nous	-
14	G161019-59		Rack		Appelez-nous	-
15	G178284-02		Supt Ls		Appelez-nous	-
16	G178287-02		Supt Rs		Appelez-nous	-
17	G161019-60		Rack (3)		Appelez-nous	-
18	G186932-13		Gasket		Appelez-nous	-
19	G187452-02		Panel, Inner		Appelez-nous	-
20	G187460-01		Door-dairy		Appelez-nous	-
21	G178694-09		Panel-avoc		Appelez-nous	-
21	G178694-08		Panel-avoc		Appelez-nous	-
21	G178694-11		Panel-almd		Appelez-nous	-
21	G178694-10		Panel-cofe		Appelez-nous	-
21	G178694		Panel-whte		Appelez-nous	-
22	G179801		End-hndl-lwr		Appelez-nous	-
*67976	G185566		Screw		Appelez-nous	-
*67976	G168981-01		Kit-dr Conv-whte		Appelez-nous	-
*67977	G168981-08		Kit-dr Conv-avoc		Appelez-nous	-
*68014	G168981-09		Kit-dr Conv-weat		Appelez-nous	-
*68015	G168981-10		Kit-dr Conv-cofe		Appelez-nous	-
*68015	168981-11		Kit-dr Conv Almd		Appelez-nous	-
19A	G162585		Screw		Appelez-nous	-
21A	G183138		Bearing-hng (non-illustrated)		Appelez-nous	-
8A	G183138		Bearing-hng (non-illustrated)		Appelez-nous	-
9A	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
