SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - Ice Maker Parts


06 - Ice Maker Installation Parts

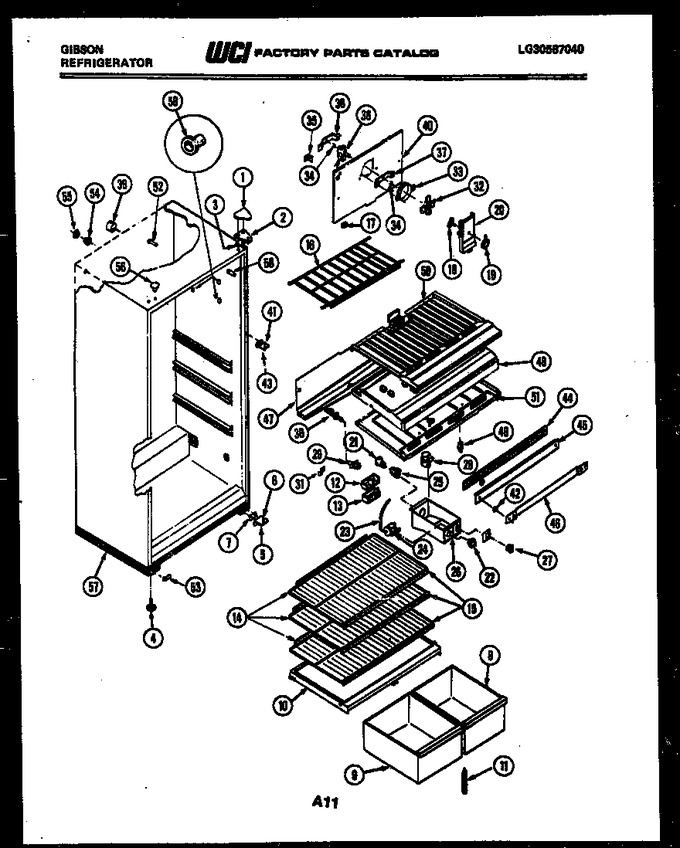

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G183558-08		Cover-hng Avoc.		Appelez-nous	-
1	G183558-09		Cover-hng Weat		Appelez-nous	-
1	G183558-10		Cover-hng Cofe		Appelez-nous	-
1	G183558-11		Cover-hng Almd		Appelez-nous	-
1	G183558-01		Cover-hng Whte		Appelez-nous	-
2	G183714		Bkt-hinge		Appelez-nous	-
3	G183861		Shim		Appelez-nous	-
4	G185713		Screw, Leveling		Appelez-nous	-
5	G181019		Brkt-lwr Hng		Appelez-nous	-
6	G166505		Pin-hng.		Appelez-nous	-
7	G163203		Shim		Appelez-nous	-
8	G176639-23		Pan-crspr		Appelez-nous	-
9	G490015-39		Pan-crspr		Appelez-nous	-
10	G490064-01		Cover-crspr		Appelez-nous	-
11	G166310-02		Supt-cover		Appelez-nous	-
12	G162675		Defl.-air		Appelez-nous	-
13	G162178		Cover-defl.		Appelez-nous	-
14	G181153-06		Shelf-(3)		Appelez-nous	-
15	G172410-06		Trim (3)		Appelez-nous	-
16	G184572-04		Shelf-fzr		Appelez-nous	-
17	G166495-01		Cap, Prot (2)		Appelez-nous	-
18	G162661		Damper		Appelez-nous	-
19	G162747-05		Knob-dmpr.		Appelez-nous	-
20	G163061-81		Cover, Fan		Appelez-nous	-
21	G165723		Bulb, Light		Appelez-nous	-
22	G490107-02		Knob, Control		Appelez-nous	-
23	G142176-11		Tube Plastic		Appelez-nous	-
24	G162205-11		Control		Appelez-nous	-
25	G168302		Socket Light		Appelez-nous	-
26	G176722-03		Box-cont		Appelez-nous	-
27	G178402-02		Switch-slide		Appelez-nous	-
28	G187484		Timer		Appelez-nous	-
29	G162179		Spout, Drain		Appelez-nous	-
30	G184920-01		Tube, Drain		Appelez-nous	-
31	G101747		Clamp		Appelez-nous	-
32	G174705		Fan		Appelez-nous	-
33	G167217		Ring-orifice		Appelez-nous	-
34	G157666		Bushing (2)		Appelez-nous	-
35	G164571		Bracket		Appelez-nous	-
36	G173301		Motor, Blower		Appelez-nous	-
37	G185302		Bracket-frnt		Appelez-nous	-
38	G185303		Bracket-rear		Appelez-nous	-
39	G85642		Tube, Rubber		Appelez-nous	-
40	G177529		Cover, Coil		Appelez-nous	-
41	G163207		Bracket-hng		Appelez-nous	-
42	G490082		Spacer (2)		Appelez-nous	-
43	G142220		Pin		Appelez-nous	-
44	G177254		Heater, Mullion		Appelez-nous	-
45	G180373-10		Mullion-cofe		Appelez-nous	-
45	G180373-01		Mullion-whte		Appelez-nous	-
45	G180373-08		Mullion-avoc		Appelez-nous	-
45	G180373-09		Mullion-weat		Appelez-nous	-
45	G180373-11		Mullion-almd		Appelez-nous	-
46	G490087		Strap		Appelez-nous	-
47	G177534		Trough		Appelez-nous	-
48	G162672		Switch Light		Appelez-nous	-
49	G176777		Divider, Styro		Appelez-nous	-
50	G185912		Btm. Fzr.		Appelez-nous	-
51	G490021-02		Top-refr.		Appelez-nous	-
52	G163669		Supt. Cvr. (2)		Appelez-nous	-
53	G166912		Btn-plug		Appelez-nous	-
54	G174733		Ferrule, Inner		Appelez-nous	-
55	G174734		Ferrule Outer		Appelez-nous	-
56	G174747-11		Button-plug, Almond		Appelez-nous	-
56	G174747-10		Plug-button, Coffee		Appelez-nous	-
56	G174747-01		Button-plug-white		Appelez-nous	-
56	G174747-09		Plug-button, Wheat		Appelez-nous	-
56	G174747-08		Button, Plug, Avocado		Appelez-nous	-
57	G490004-02		Base-cab		Appelez-nous	-
58	G179684-11		Trim Almd		Appelez-nous	-
58	G179684-01		Trim Whte		Appelez-nous	-
58	G179684-08		Trim Avoc		Appelez-nous	-
58	G179684-09		Trim Weat		Appelez-nous	-
58	G179684-10		Trim Cofe		Appelez-nous	-
59	G167565		Grommet Rs (4)		Appelez-nous	-
59	G176993		Grommet-ls (4)		Appelez-nous	-
18A	G162662		Nut-push (non-illustrated)		Appelez-nous	-
28A	G105289		Screw		Appelez-nous	-
29A	G185279		Pin, Push (non-illustrated)		Appelez-nous	-
30A	G176853		Ring, Seal (non-illustrated)		Appelez-nous	-
3A	G167103		Screw (2) (non-illustrated)		Appelez-nous	-
3B	G103903		Washer, Nylon				$ 3.10
3C	G164355		Wa 5/16 X 5/8 (1) (non-illustrated)		Appelez-nous	-
40A	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
41A	G166847		Washer (4) (non-illustrated)		Appelez-nous	-
41B	G183103		Screw (4)		Appelez-nous	-
4A	G183073		Nut-anchor (non-illustrated)		Appelez-nous	-
51A	G162673		Scr 8 X 1 3/4 (3) (non-illustrated)		Appelez-nous	-
59A	G174818		Harness, Divider		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
