02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - Ice Maker Parts


06 - Ice Maker Installation Parts

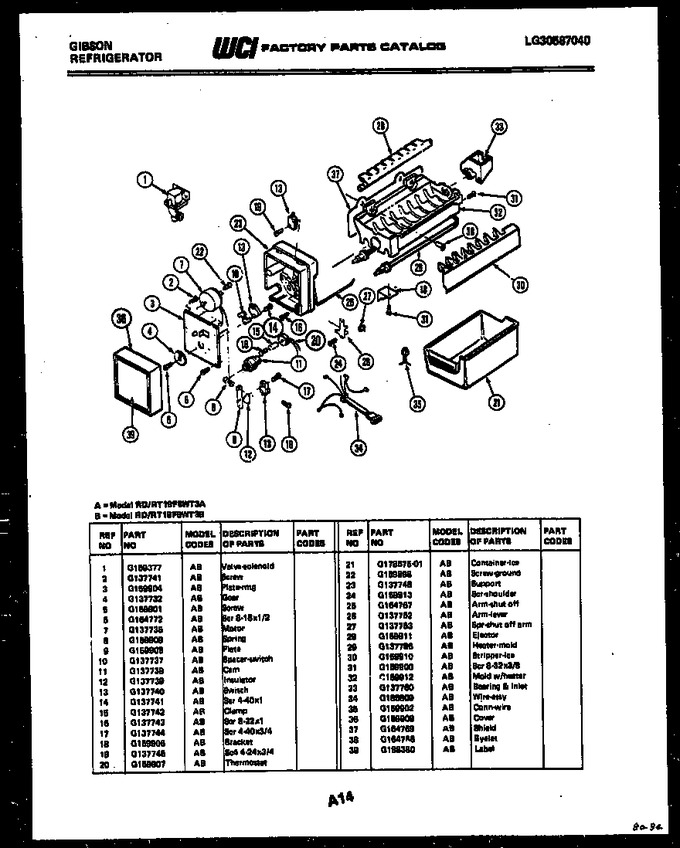

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G159377		Valve-solenoid		Appelez-nous	-
2	G137741		Screw		Appelez-nous	-
3	G159904		Plate-mtg		Appelez-nous	-
4	G137732		Gear		Appelez-nous	-
5	G159901		Screw		Appelez-nous	-
6	G164772		Scr 8-18 X 1/2		Appelez-nous	-
7	G137735		Motor		Appelez-nous	-
8	G159909		Spring		Appelez-nous	-
9	G159905		Plate		Appelez-nous	-
10	G137737		Spacer-switch		Appelez-nous	-
11	G137738		Cam		Appelez-nous	-
12	G137739		Insulator		Appelez-nous	-
13	G137740		Switch		Appelez-nous	-
14	G137741		Scr 4-40 X 1		Appelez-nous	-
15	G137742		Clamp		Appelez-nous	-
16	G137743		Scr 8-32 X 1		Appelez-nous	-
17	G137744		Scr 4-40 X 3/4		Appelez-nous	-
18	G159906		Bracket		Appelez-nous	-
19	G137745		Sc4 4-24 X 3/4		Appelez-nous	-
20	G159907		Thermostat		Appelez-nous	-
21	G178675-01		Container, Ice		Appelez-nous	-
22	G159898		Screw, Ground		Appelez-nous	-
23	G137748		Support		Appelez-nous	-
24	G159913		Scr-shoulder		Appelez-nous	-
25	G164767		Arm, Shut Off		Appelez-nous	-
26	G137752		Arm-lever		Appelez-nous	-
27	G137753		Spr-shut Off Arm		Appelez-nous	-
28	G159911		Ejector		Appelez-nous	-
29	G137756		Heater, Mold		Appelez-nous	-
30	G159910		Stripper-ice		Appelez-nous	-
31	G159900		Scr 8-32 X 3/8		Appelez-nous	-
32	G159912		Mold W/ Heater		Appelez-nous	-
33	G137760		Bearing & Inlet		Appelez-nous	-
34	G185809		Wire-assy		Appelez-nous	-
35	G159902		Conn-wire		Appelez-nous	-
36	G159908		Cover		Appelez-nous	-
37	G164769		Shield		Appelez-nous	-
38	G164766		Eyelet		Appelez-nous	-
39	G188380		Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
