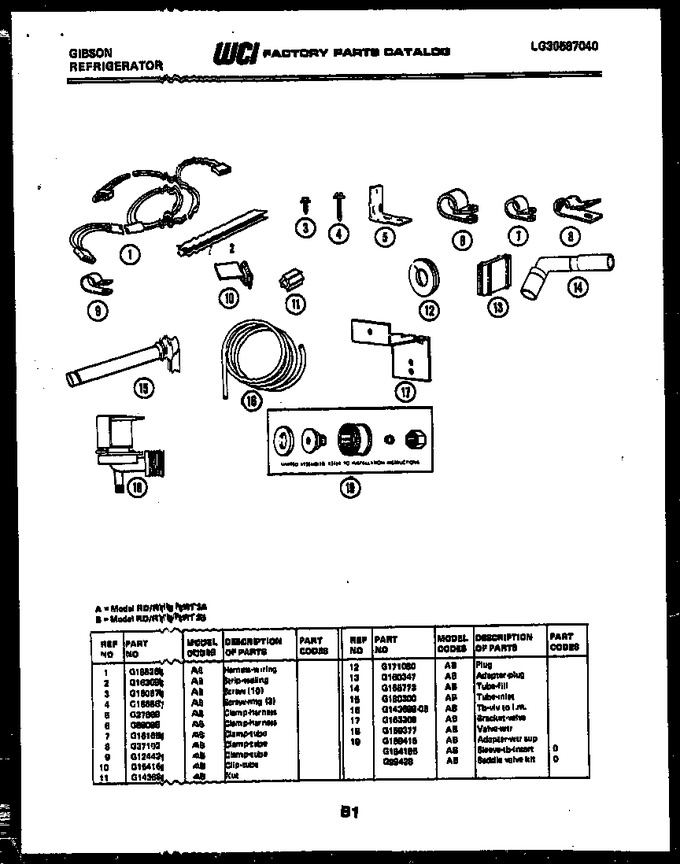

06 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185266 | Harness-wiring |
|
- | |||||
| 2 | G163698 | Strip-sealing |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | G166567 | Screw-mtg (3) |
|
- | |||||
| 5 | G27669 | Clamp-harness |
|
- | |||||
| 6 | G88088 | Clamp-harness |
|
- | |||||
| 7 | G161655 | Clamp-tube |
|
- | |||||
| 8 | G37102 | Clamp-tube |
|
- | |||||
| 9 | G124429 | Clamp |
|
- | |||||
| 10 | G154167 | Clip-tube |
|
- | |||||
| 11 | G143689 | Nut |
|
- | |||||
| 12 | G171080 | Plug |
|
- | |||||
| 13 | G160347 | Adapter-plug |
|
- | |||||
| 14 | G165773 | Tube-fill |
|
- | |||||
| 15 | G180300 | Tube-inlet |
|
- | |||||
| 16 | G143688-05 | Tb-vlv To I.m. |
|
- | |||||
| 17 | G163309 | Bracket-valve |
|
- | |||||
| 18 | G159377 | Valve-wtr |
|
- | |||||
| 19 | G159415 | Adapter-wtr Sup |
|
- | |||||
| *68207 | G154156 | Sleeve-tb-insert |
|
- | |||||
| *68208 | G99428 | Saddle Valve Kit |
|
- |
