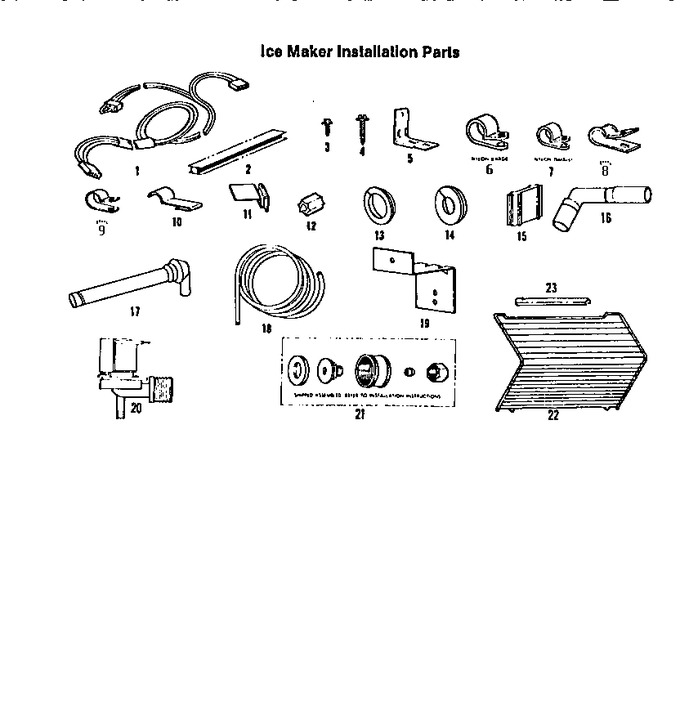

01 - Ice Maker Installation


02 - Ice Maker


07 - Door Parts


08 - Cabinet Parts


09 - Cabinet Parts


10 - Cabinet Parts


11 - System & Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185266		Wiring Harness		Appelez-nous	-
2	G163698		Strip-sealing		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G166567		Screw, Ice Maker Mtg. (3)		Appelez-nous	-
5	G27669		Clamp, Harness Mounting		Appelez-nous	-
6	G88088		Clamp, Wiring Harness		Appelez-nous	-
7	G161655		Clamp, Harness & Inlet Tube Mounting		Appelez-nous	-
8	G37102		Clamp, Steel, Tube Clamp		Appelez-nous	-
9	G124429		Clamp		Appelez-nous	-
10	G163706		Clip, Harness Location		Appelez-nous	-
11	G154167		Clip, Filler Tube		Appelez-nous	-
12	G143689		Nut, Inlet To Solenoid Valve		Appelez-nous	-
13	G171079		Bushing, Coil Cover		Appelez-nous	-
14	G171080		Plug, Rear Panel & Coil Cover (2)		Appelez-nous	-
15	G160347		Adapter Plug, Rear Panel		Appelez-nous	-
16	G165773		Tube, Water Fill (plastic)		Appelez-nous	-
17	G180300		Tube, Water Inlet		Appelez-nous	-
18	G143688-05		Tube, Valve To Ice Maker		Appelez-nous	-
19	G163309		Bracket, Valve To Rear Panel		Appelez-nous	-
20	G159377		Valve-solenoid		Appelez-nous	-
21	G159415		Water Supply Adapter		Appelez-nous	-
22	G163311		Shelf, Ice Maker		Appelez-nous	-
23	G163312		Hanger, Shelf		Appelez-nous	-
22A	G163105		Support, Shelf (2)		Appelez-nous	-
22B	G163104		Screw, Supports (2)		Appelez-nous	-
